Description

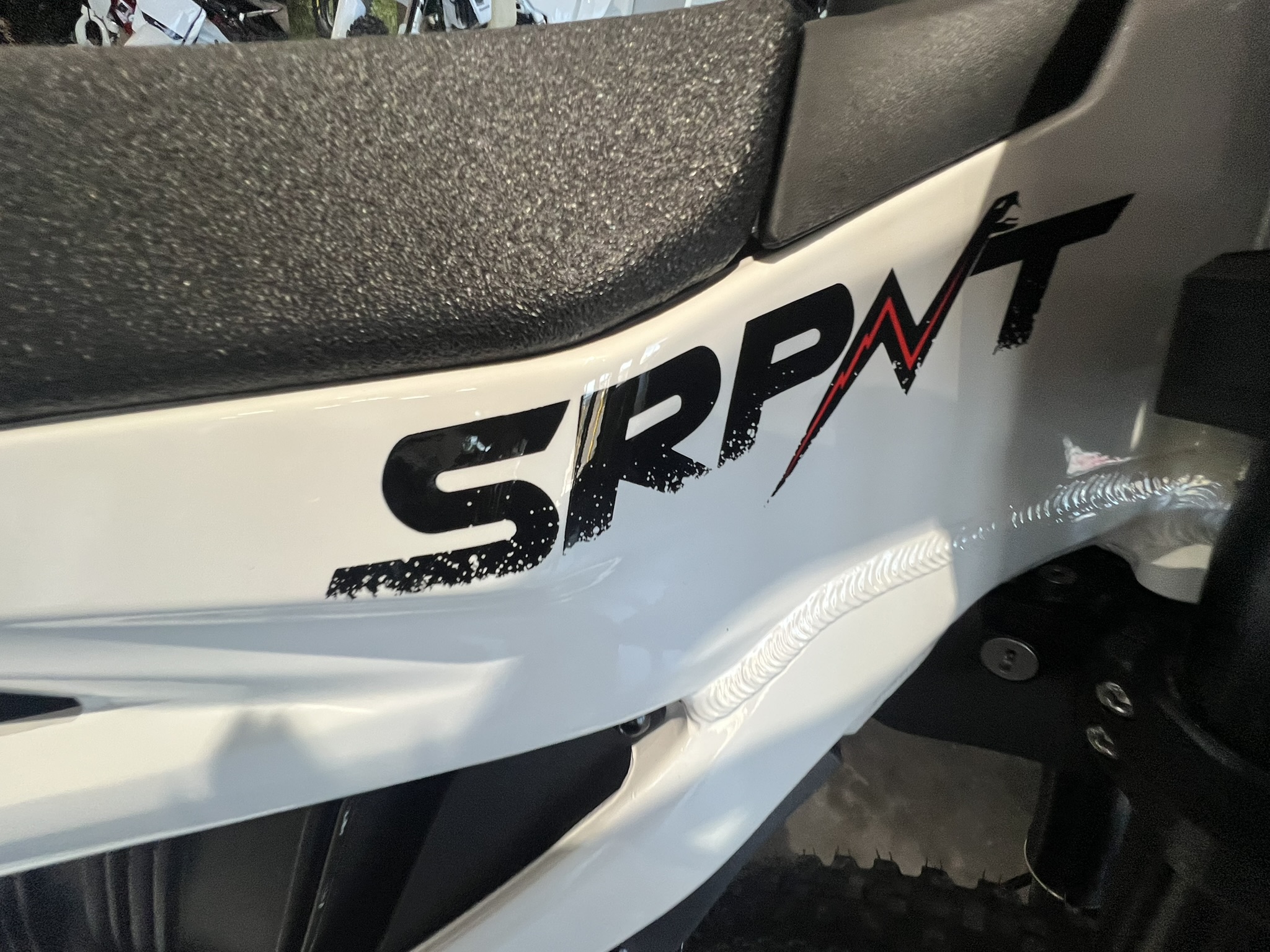

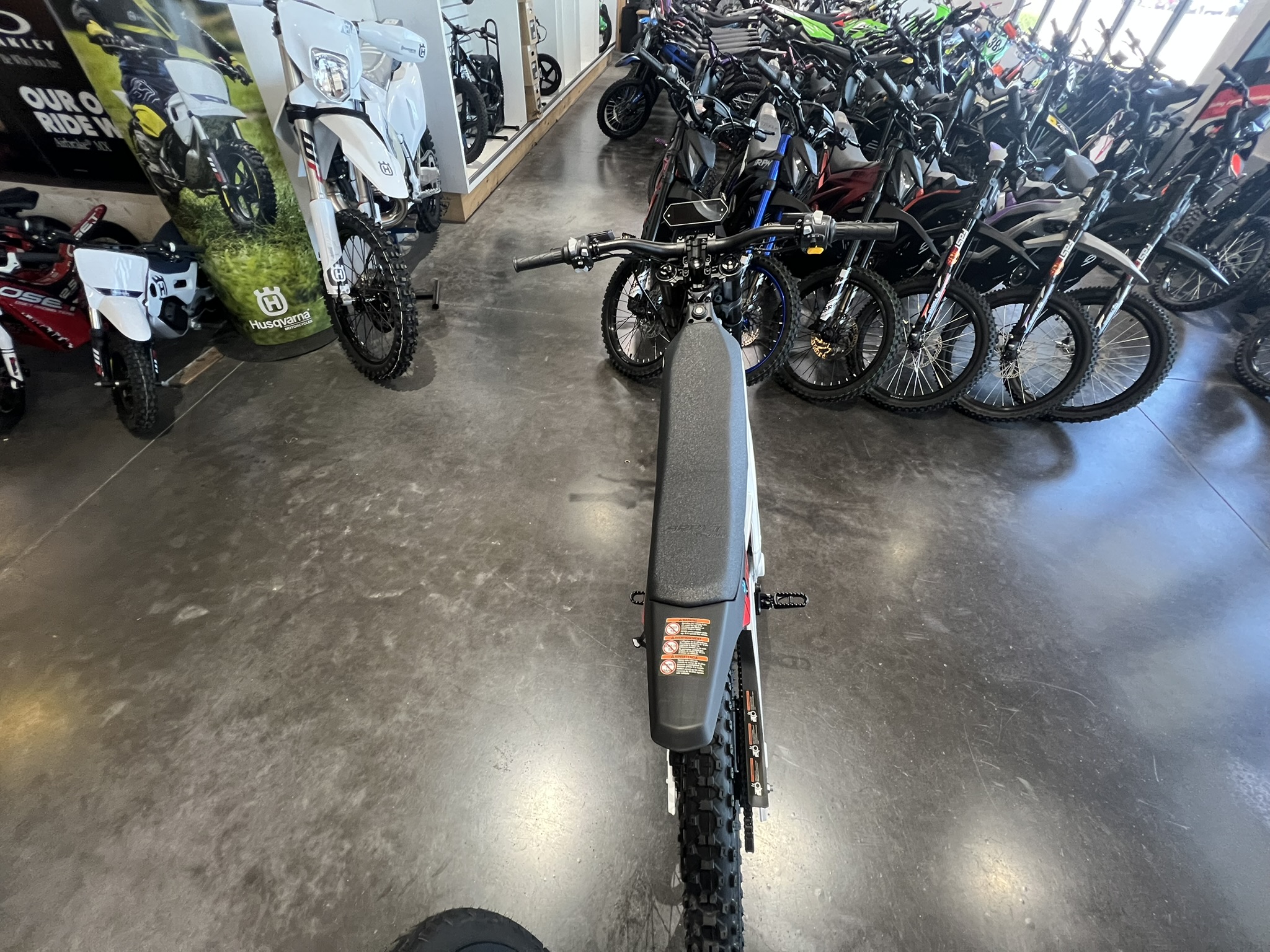

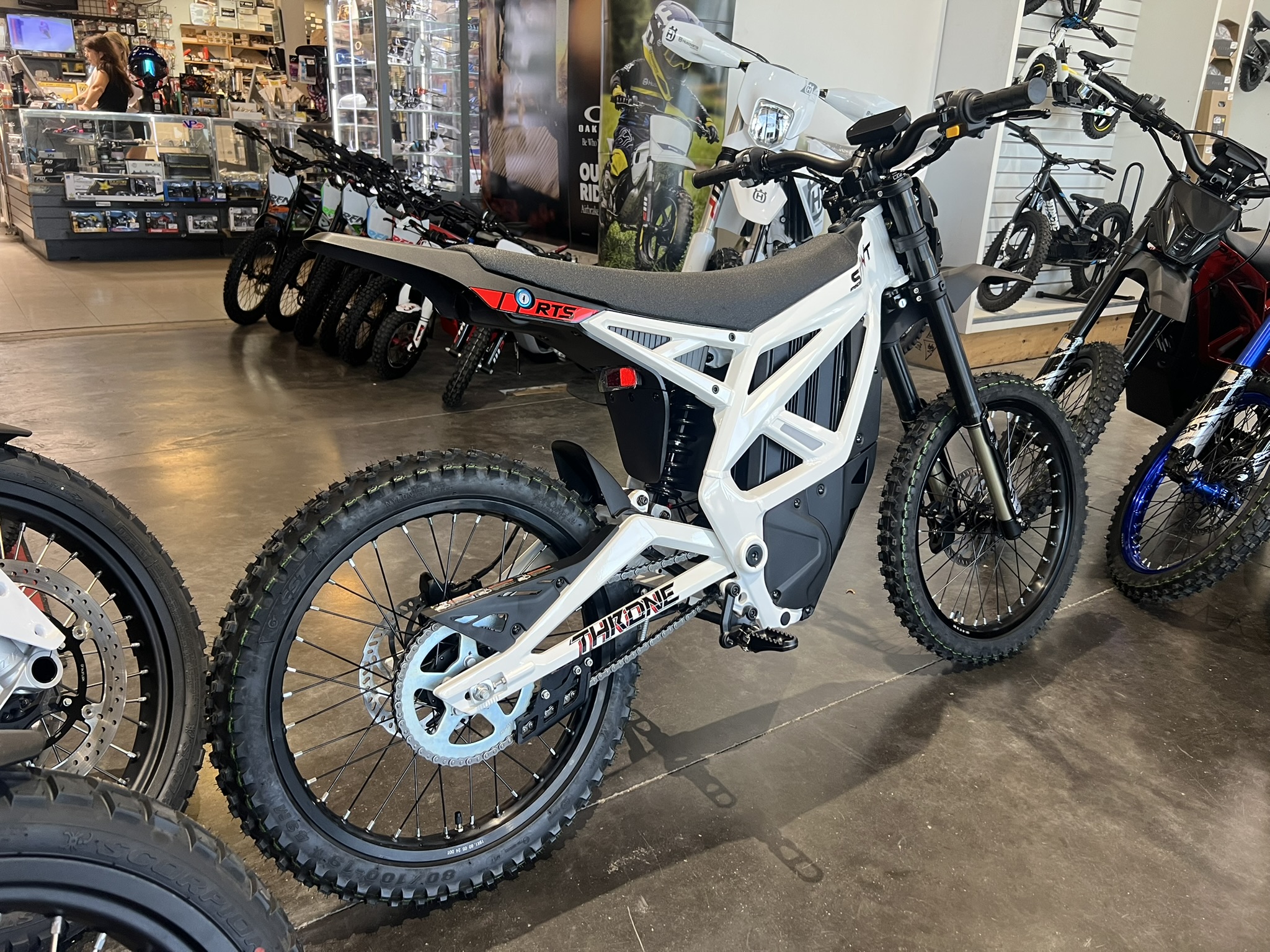

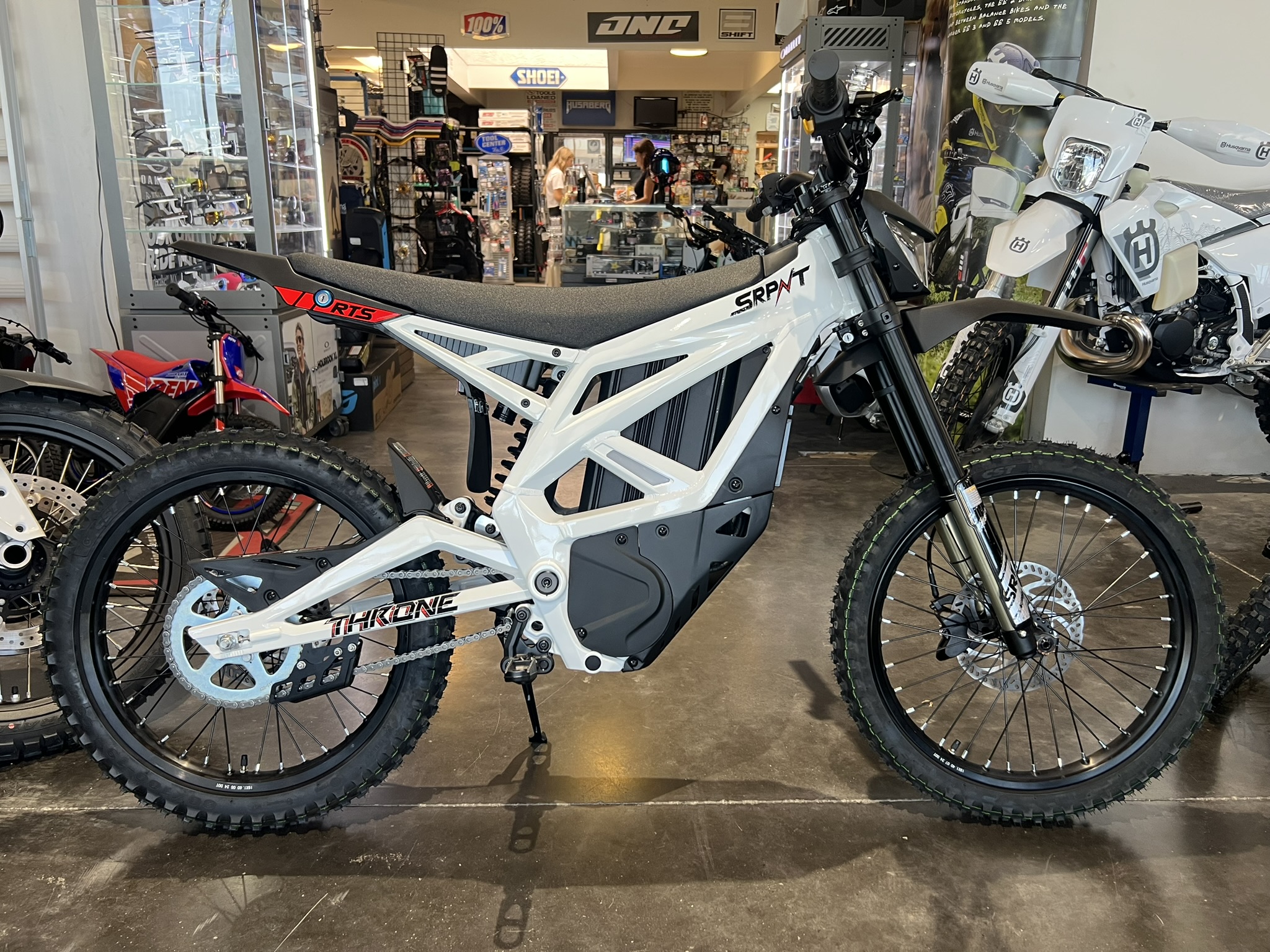

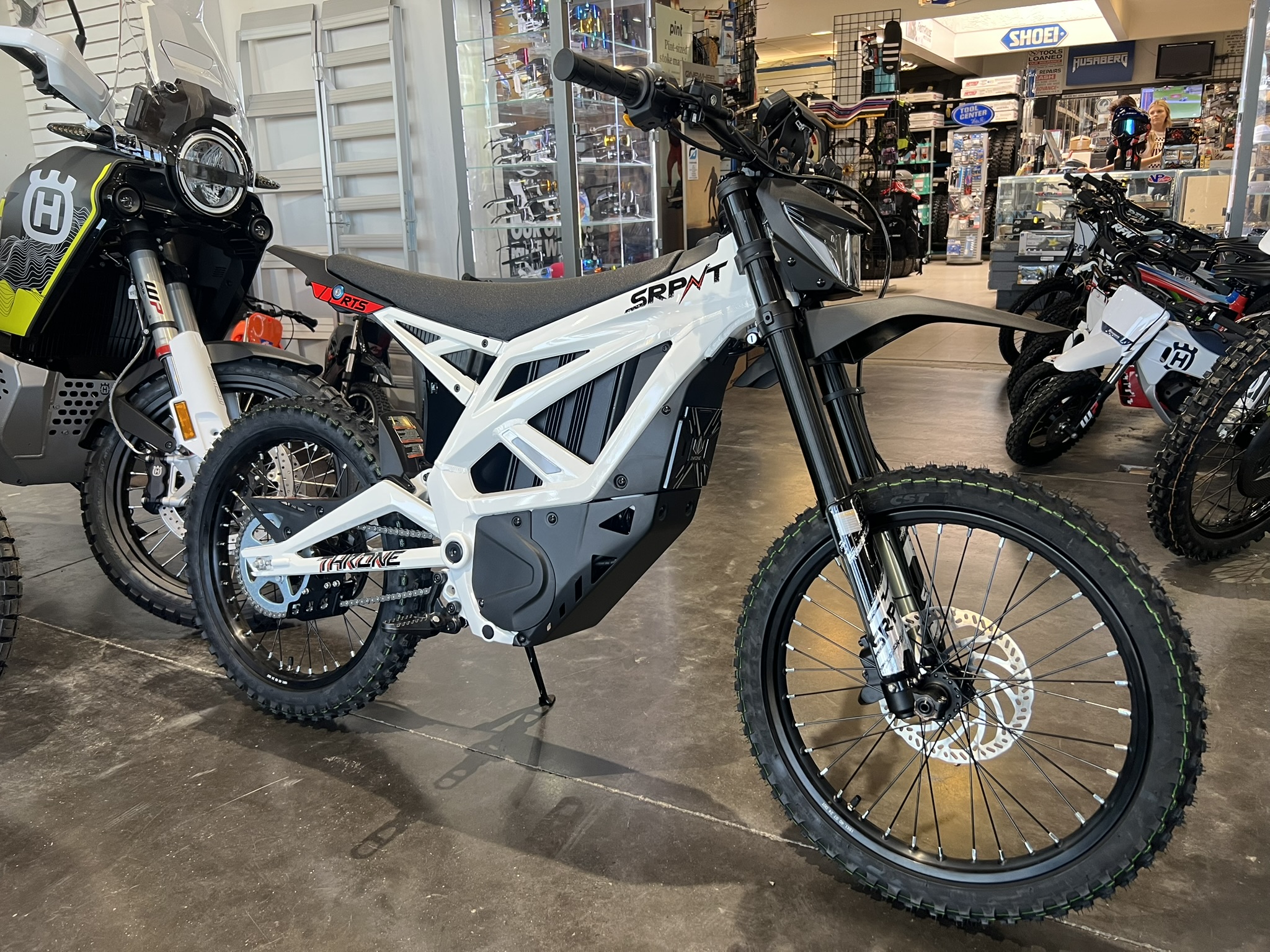

Throne Srpnt – White Savage

Specifications

MOTOR

Motor Type: PMSM

Mounting Position: Mid

Weight/Motor External Diameter: 21.05 lbs / 6.10 in

Motor axial Length: 5.12 inches

Peak Efficiency: 98%

Cooling Method: Air-Cooled

CONTROLLER

Controller Type: FOC

Dimensions: 6.30 in × 5.59 in × 3.11 in

Peak Efficiency: 98.50%

Power Modes: Eco, High, and Sport

MOTOR POWER SYSTEM

Rated Voltage: 72V (DC)

Rated Torque/ Peak Torque: 95115Nm

Motor Shaft Output Torque @1000RPM: 460Nm

Rated Rotation Speed: 5400rpm

Peak Efficiency: 97%

Range of Efficiency: 3Nm – 45Nm

TRANSMISSION

Gear Ratio: 13:51

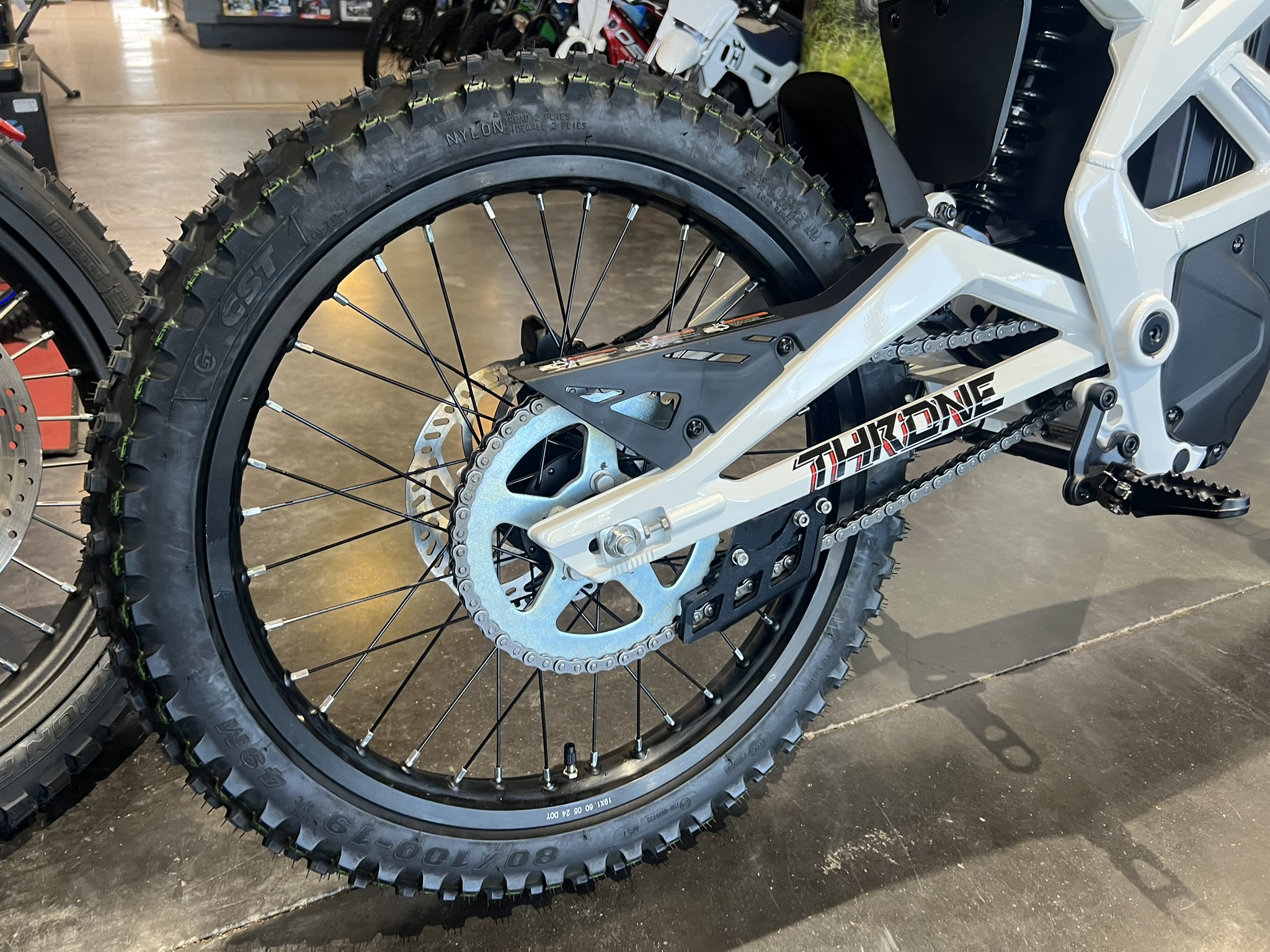

Transmission: Motorcycle Chain & 428 Drive Chain

Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS

Horn: CQC

Battery: 72V 40AH Lithium Battery with 176 LG Cells

Battery Life Time: 500 Cycles

Battery Charge Level: Integrated Battery LCD Display

Charge: 9A

Charging Time: 3.5 Hours

USB Connection: Type C

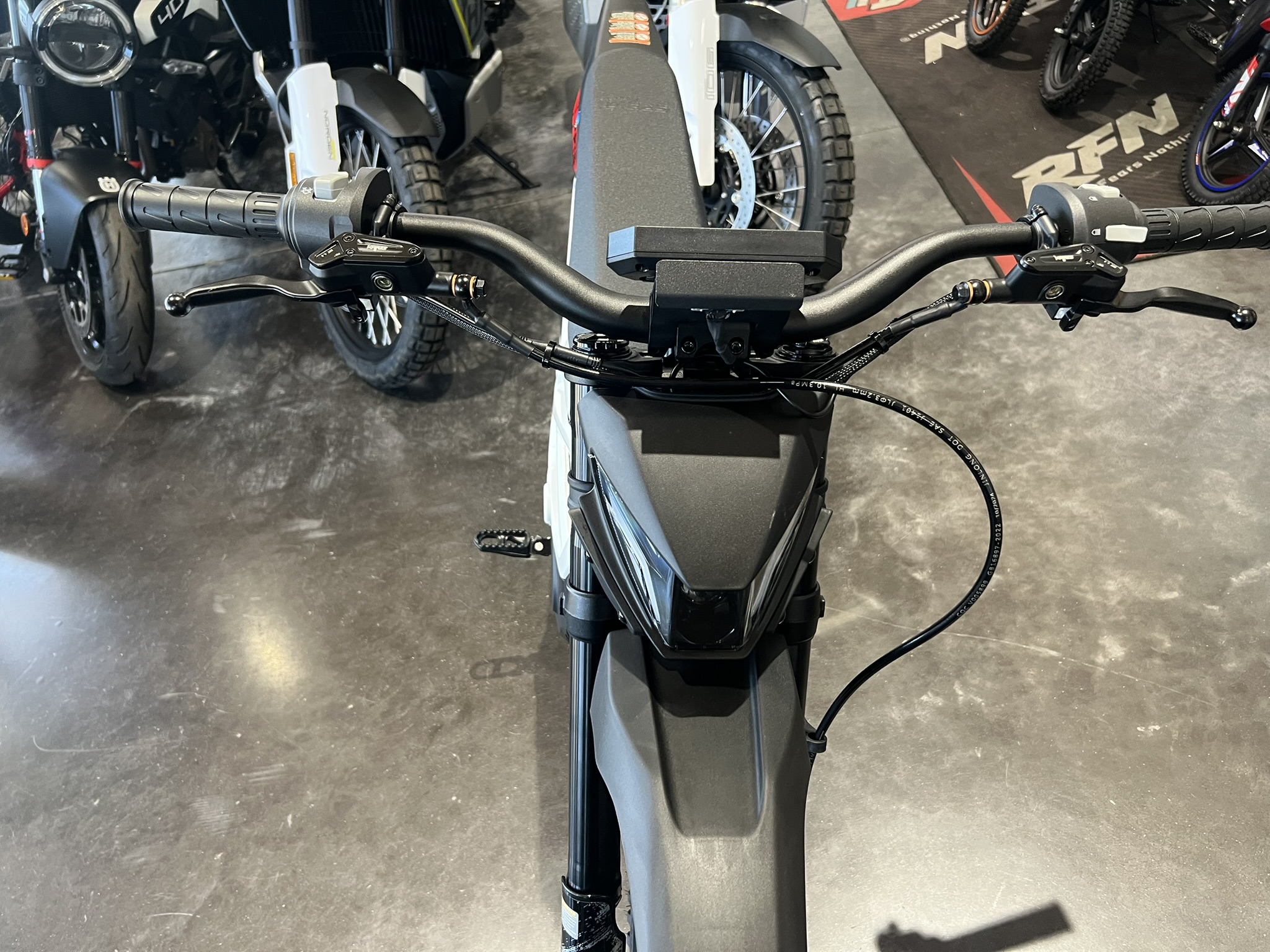

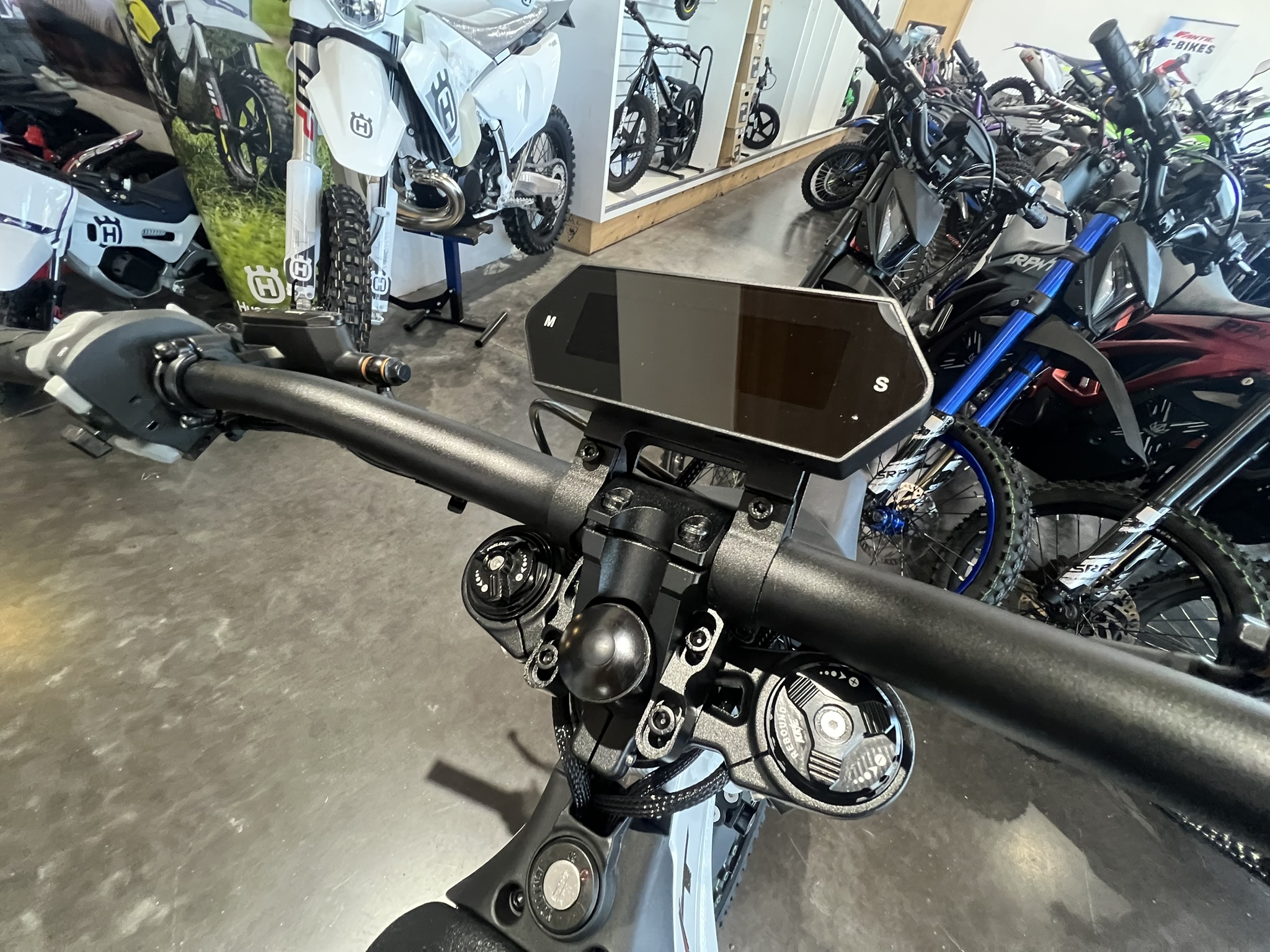

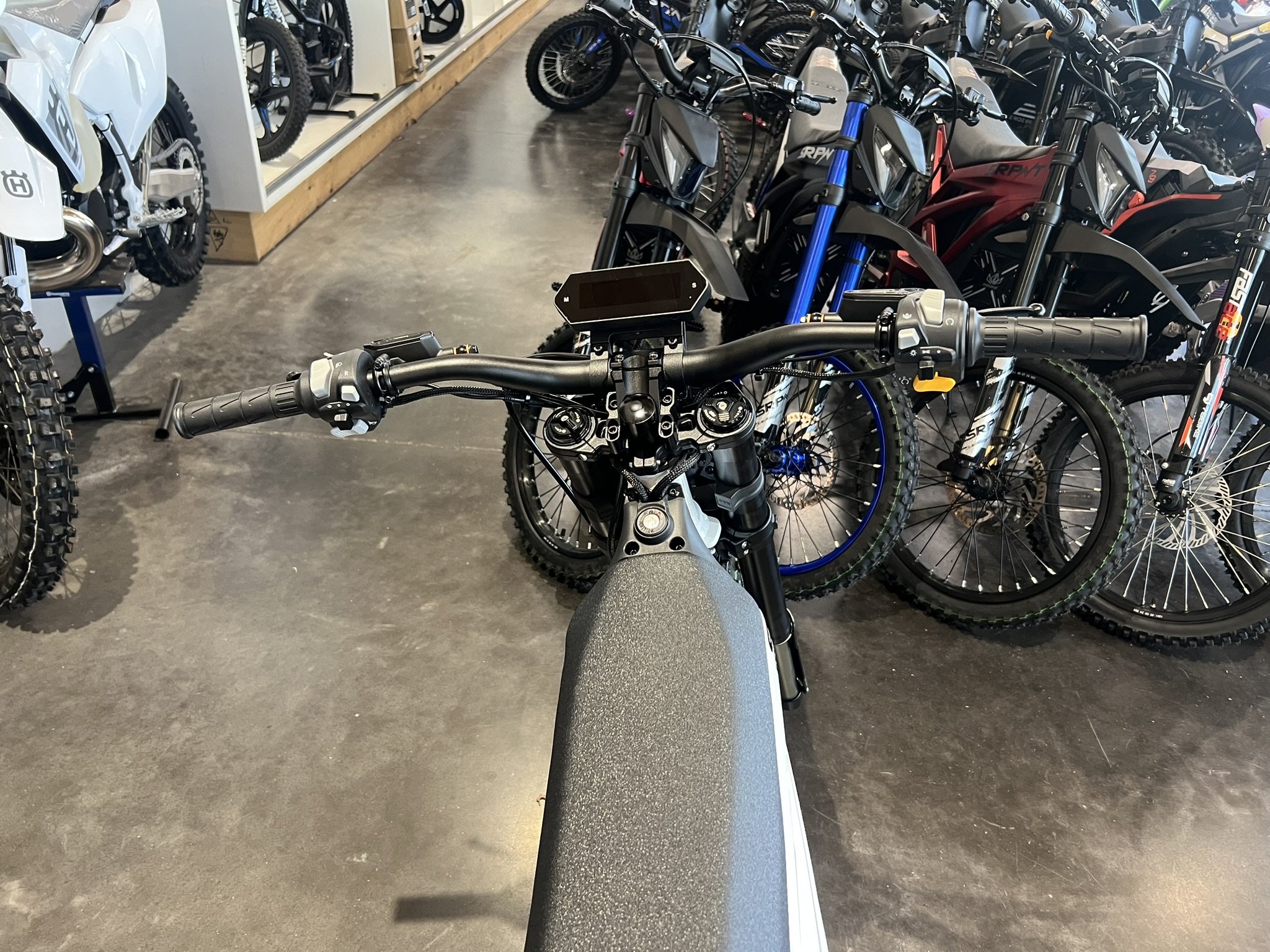

Speedometer: TFT

LED Headlight & Rear Light: Yes

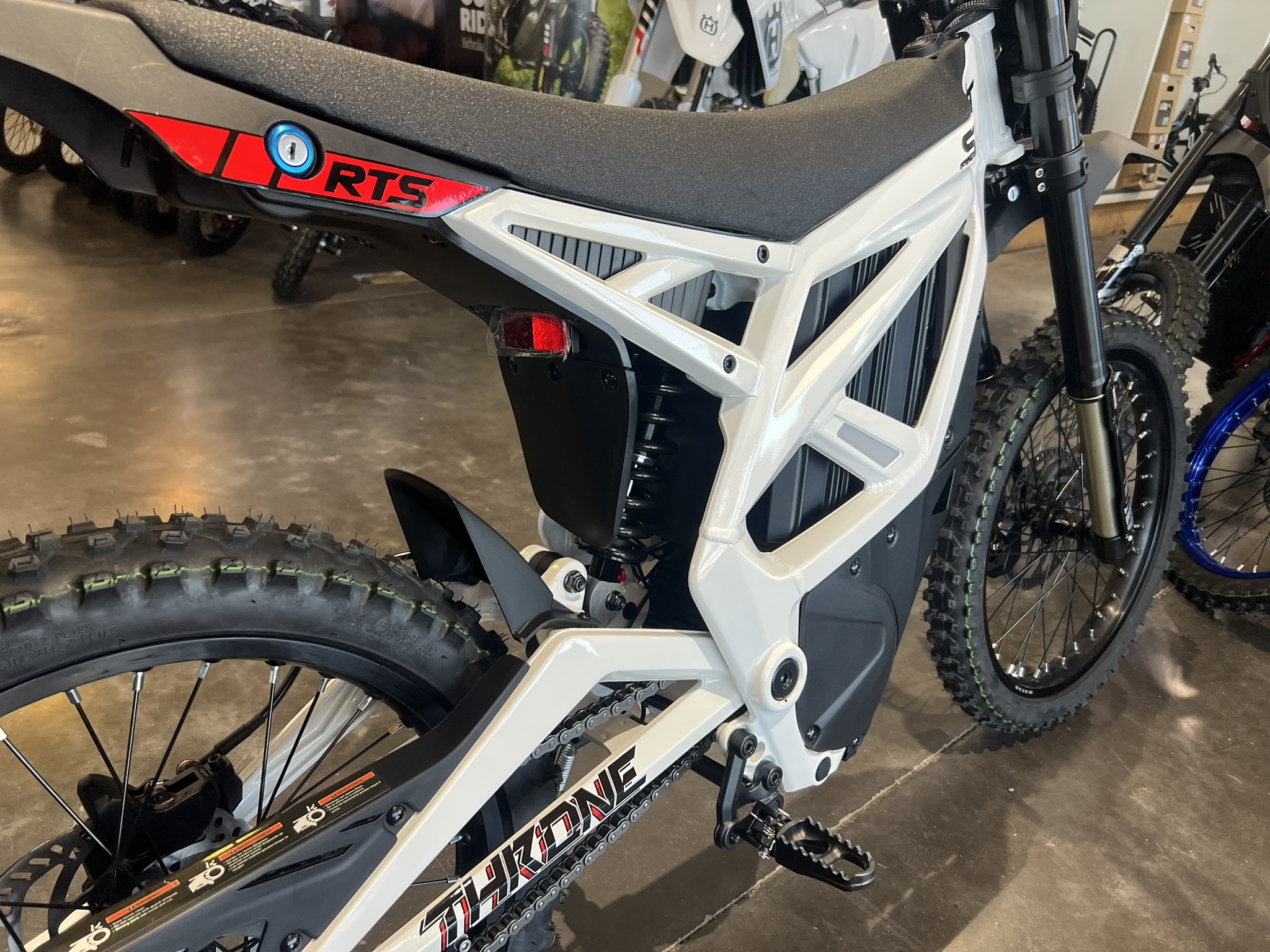

FRAME DETAILS

Chassis -Swing Arm Material: No.6061 T4&T6 Aluminum

Chassis Construction Method: Forged by 3000 Tons of Pressure

Chassis Surface & Color Processing: Baked Paint

Front Suspension: Inverted Suspension Fork with 200mm Travel

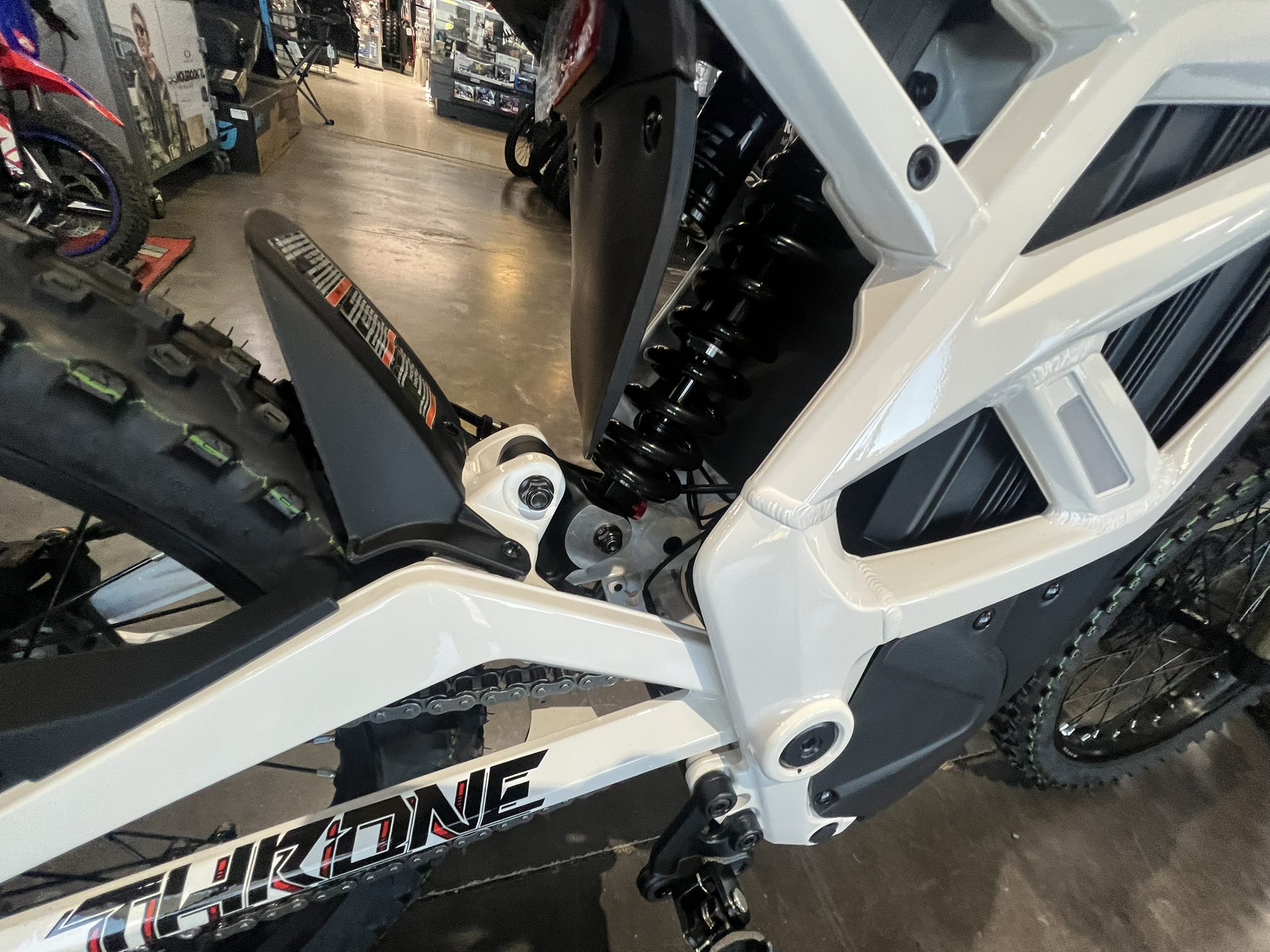

Rear Shock Absorber: KKE Suspension Link System

Wheel Type & Size: Front/Rear :1.4-19 , 1.6-19 Alloy Hubs

DEMENSIONS

Ground Clearance: 10.63 inches

Wheelbase: 49.21 inches

Seat Height: 33.46 inches

Vehicle Dimensions: 74.02 in × 31.69 in × 44.49 in

DRIVE

Top Speed: 55.92mph

Net Weight: 160.94 lbs

Rear Sprocket: 51T

Side Stand: Yes with Kill Switch

Carry Capacity: 320lb
