Description

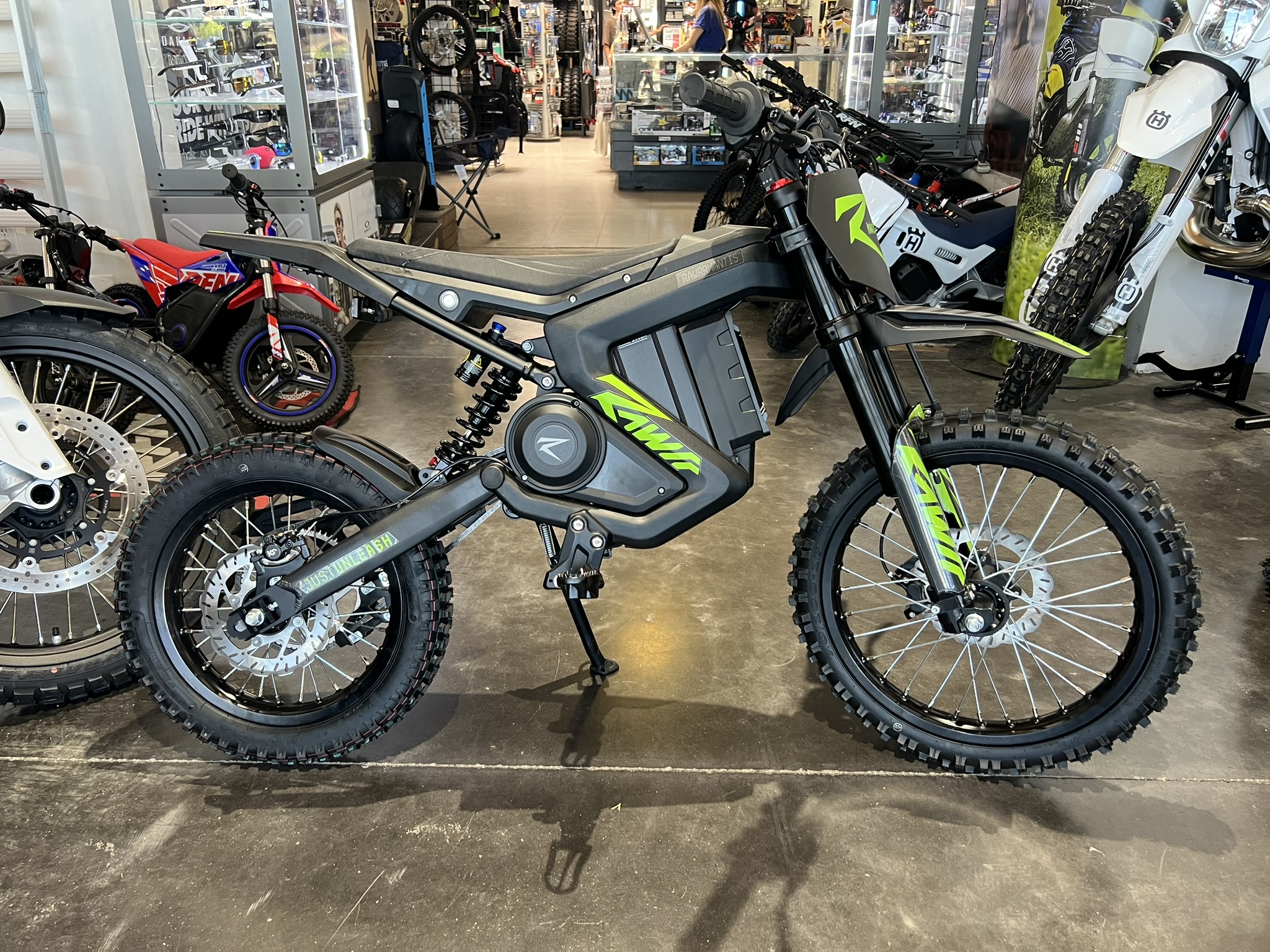

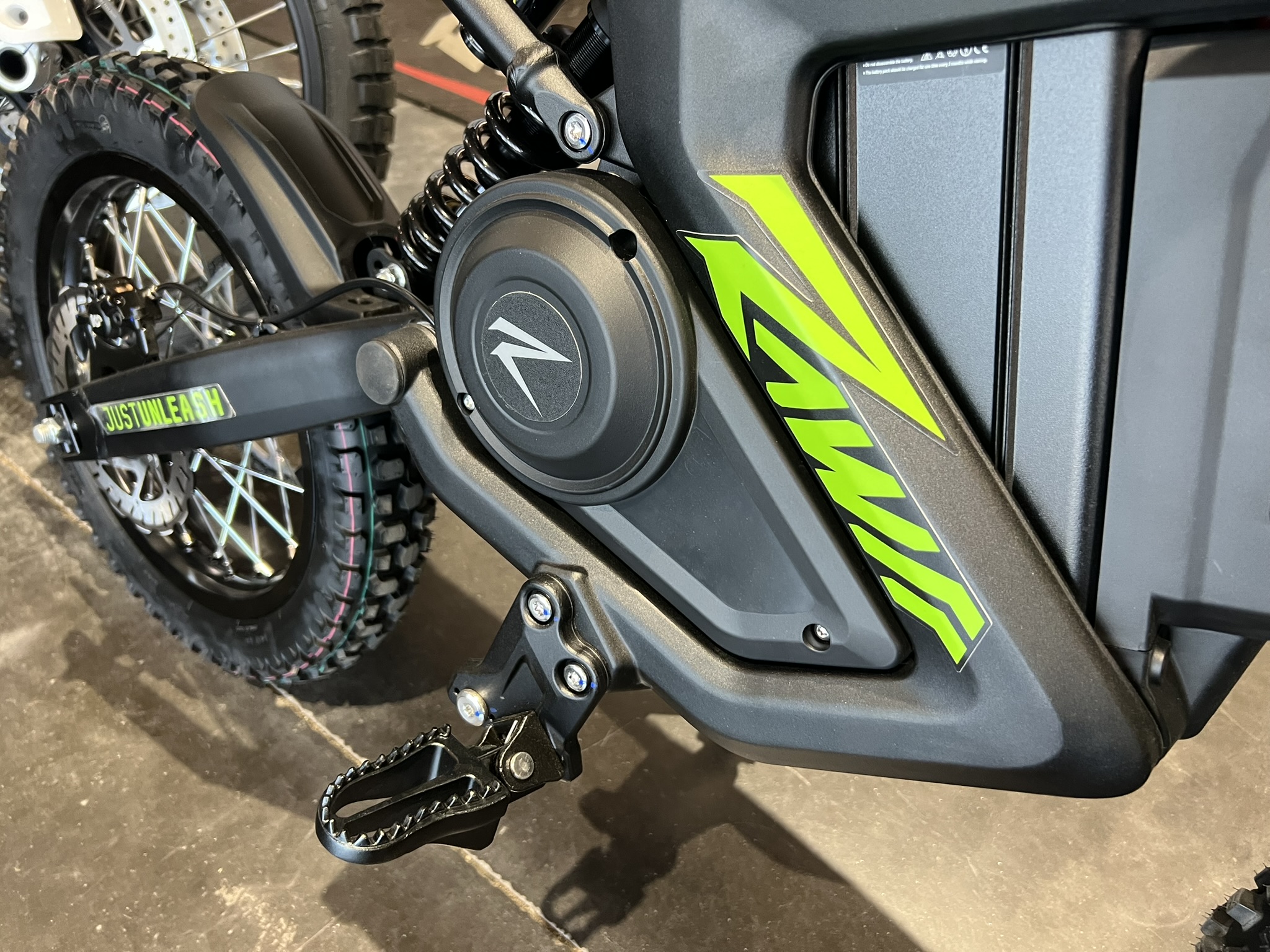

RAWRR Mini R17

SPECIFICATIONS

Rawrr Mini R17

• • Tire Size: 17″ front | 14″ rear
  • Ideal Rider Height: 4′ – 5.6′

Dimensions & Build

• Length: 64.6″ / Height: 39.0″ / Width: 26.4″

• Wheelbase: 42.6″, Seat Height: 30″

• Ground Clearance: 10.6″

• Frame: 6061 aluminum alloy, air-cooled direct chain drive

Powertrain & Performance

• Motor: 4500 W peak (2000 W continuous), generating 154.9 ft‑lb torque

• Max speed: up to 46 mph

• Acceleration: 0→18.6 mph in 1.8 s, 0→31 mph in 3.6 s, 0→46 mph in 10 s

• Climbing: rated for 45° gradient

Battery & Range

• Battery: 72 V, 1440 Wh (≈20 Ah), lithium-ion

• Range: ~31 mi, 800 cycle life

• Charge time: 3–6 hours

Brakes & Suspension

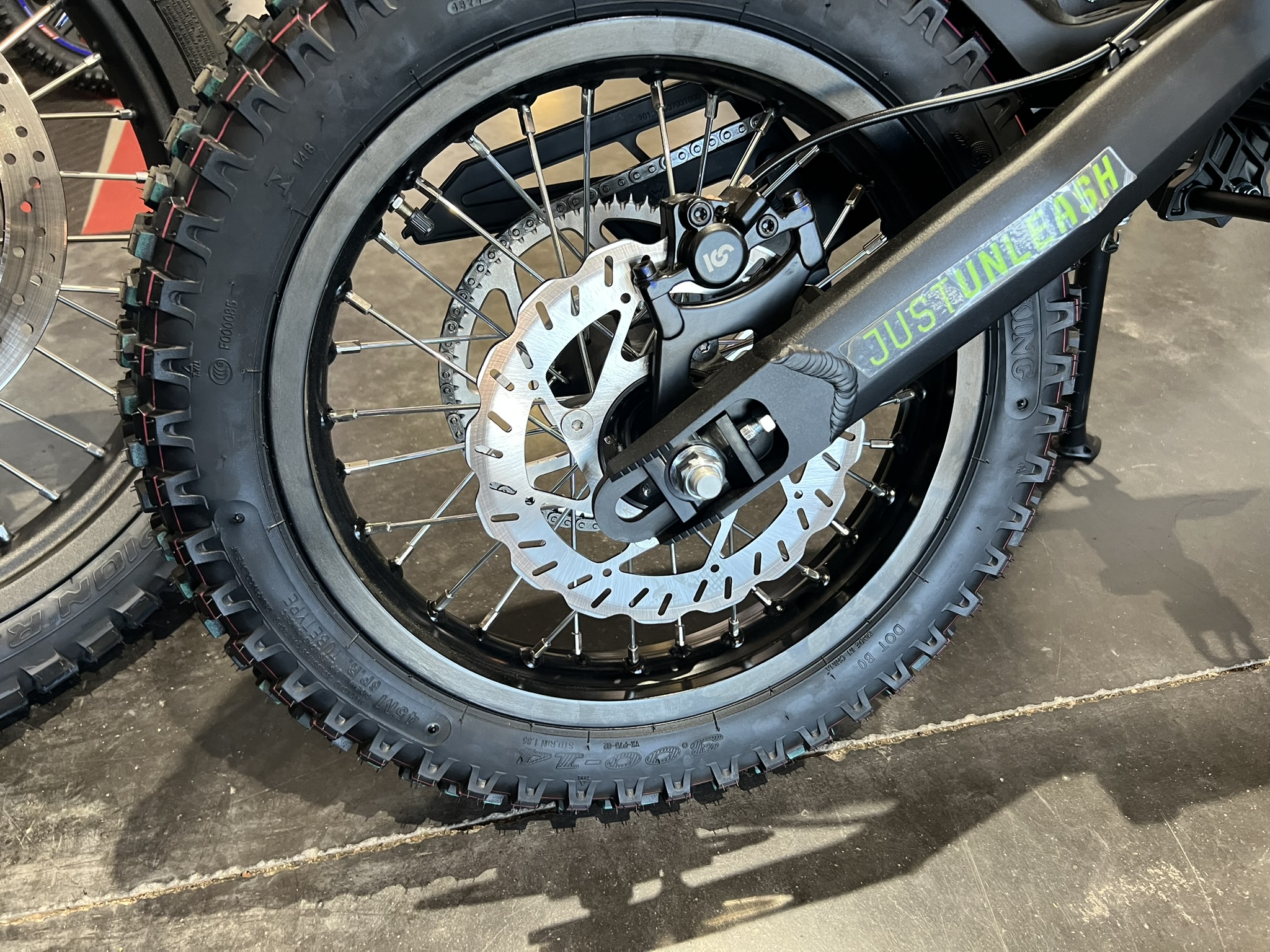

• Hydraulic disc brakes (203 mm front & rear)

• Front fork travel: 4.33″

• Includes brake sensors and kickstand sensor

Electronics & Safety

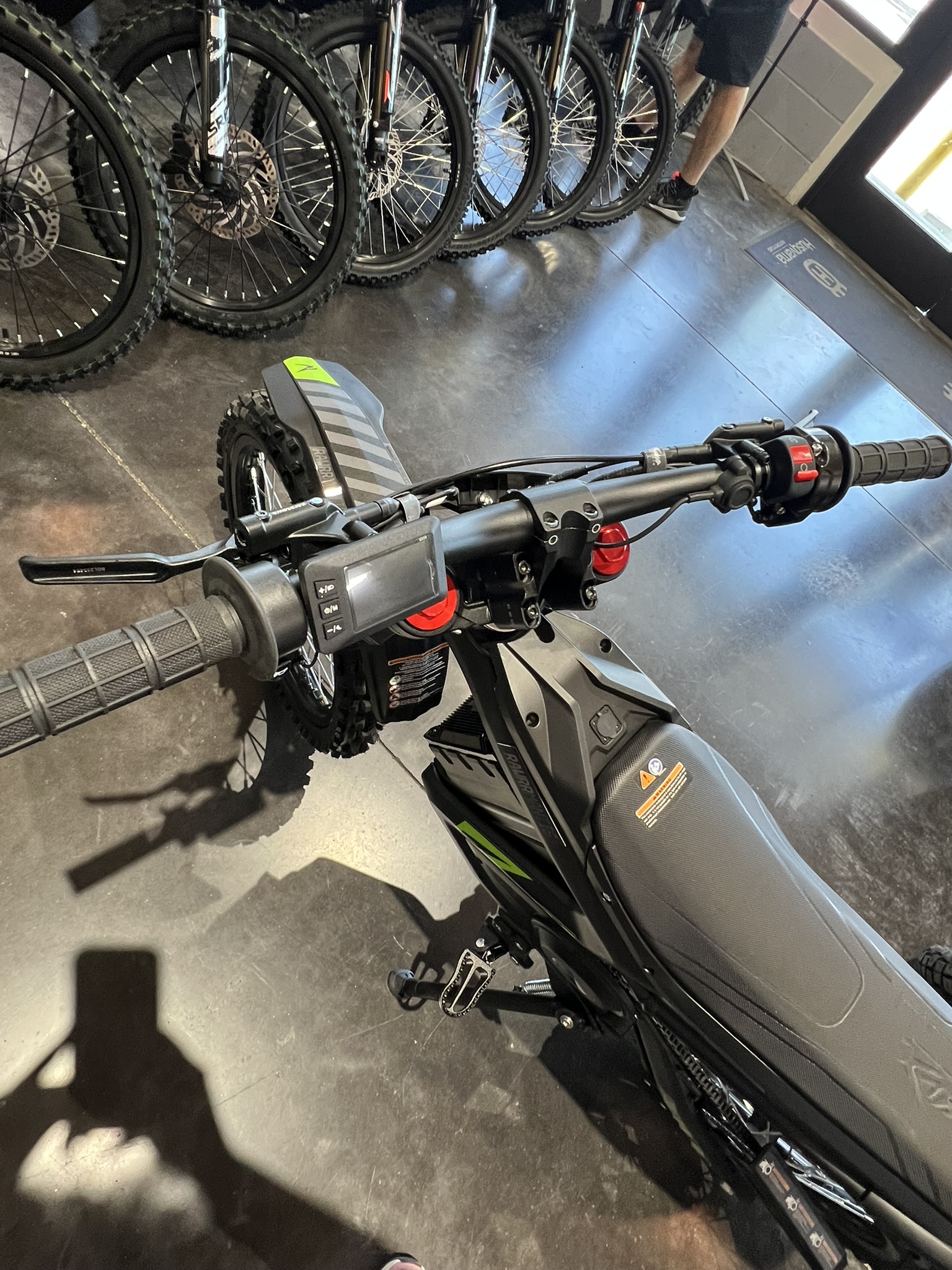

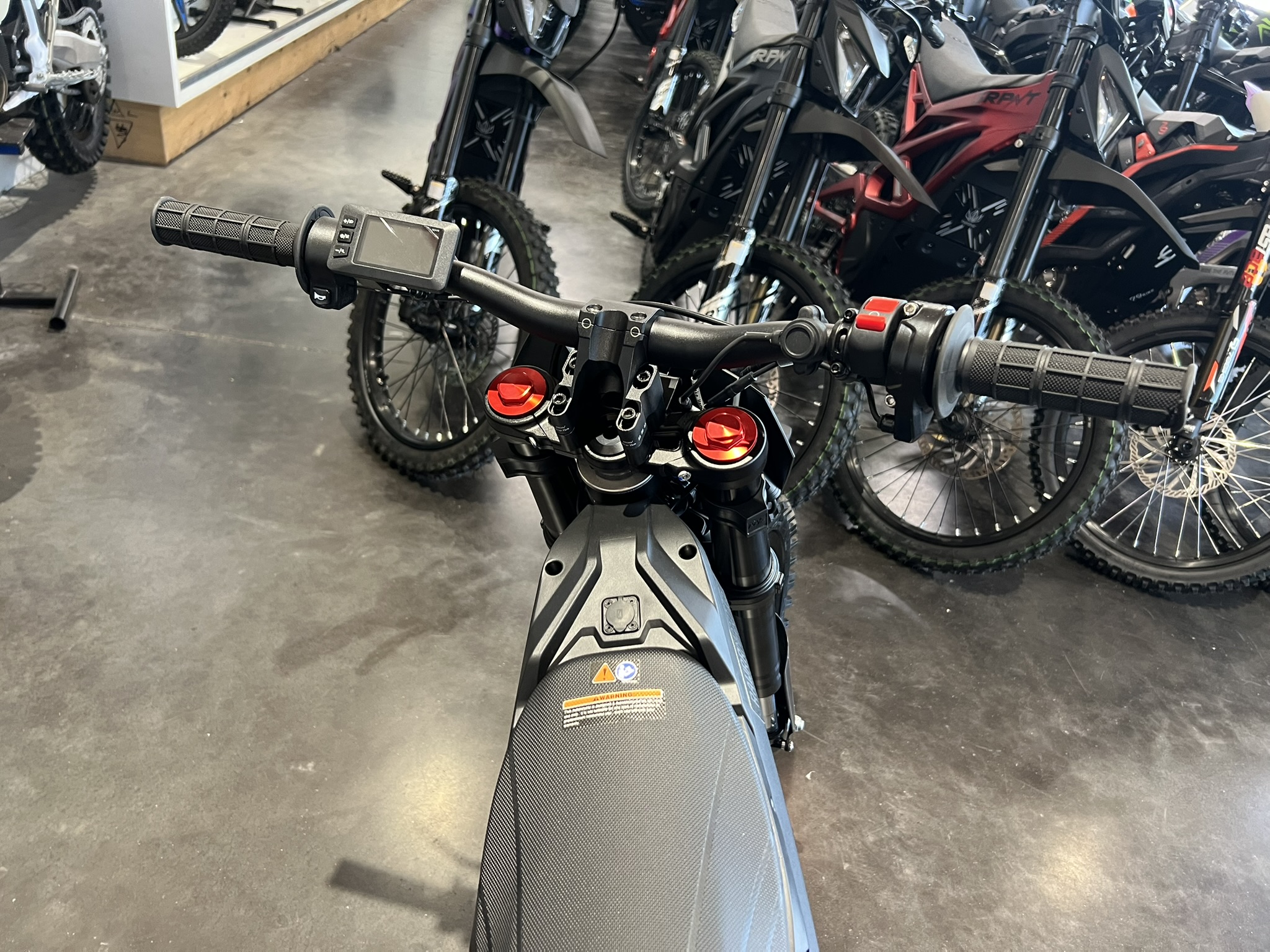

• FOC sine-wave controller, LCD dash, 3 ride modes

• IP66 motor/controller, IP55 battery/connectors

• Features: speed limiter, kill switch, chain cover, app tuning

Weight & Load Capacity

• Curb weight (with battery): 110 lbs.

• Payload capacity: 165 lbs.
