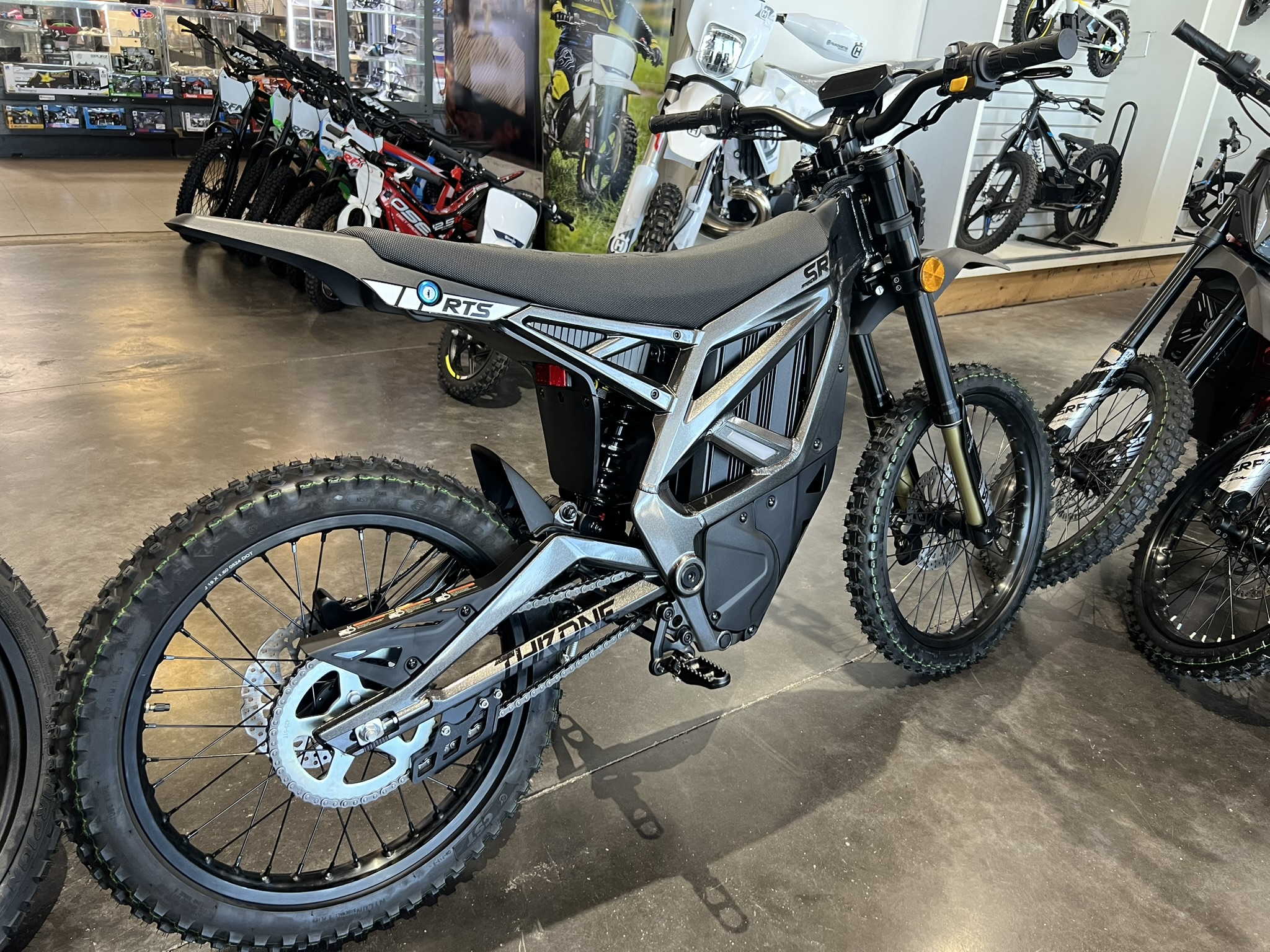

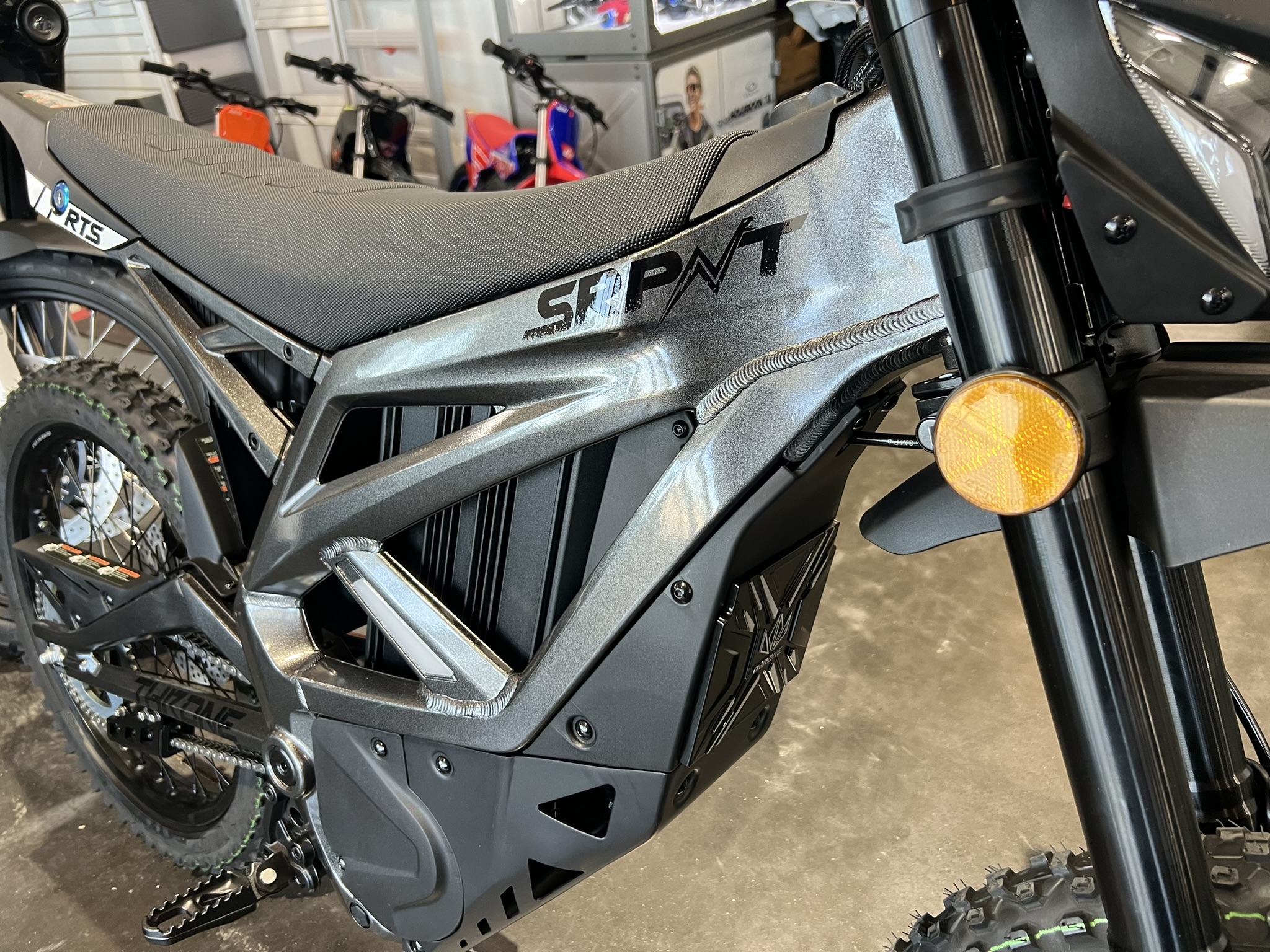

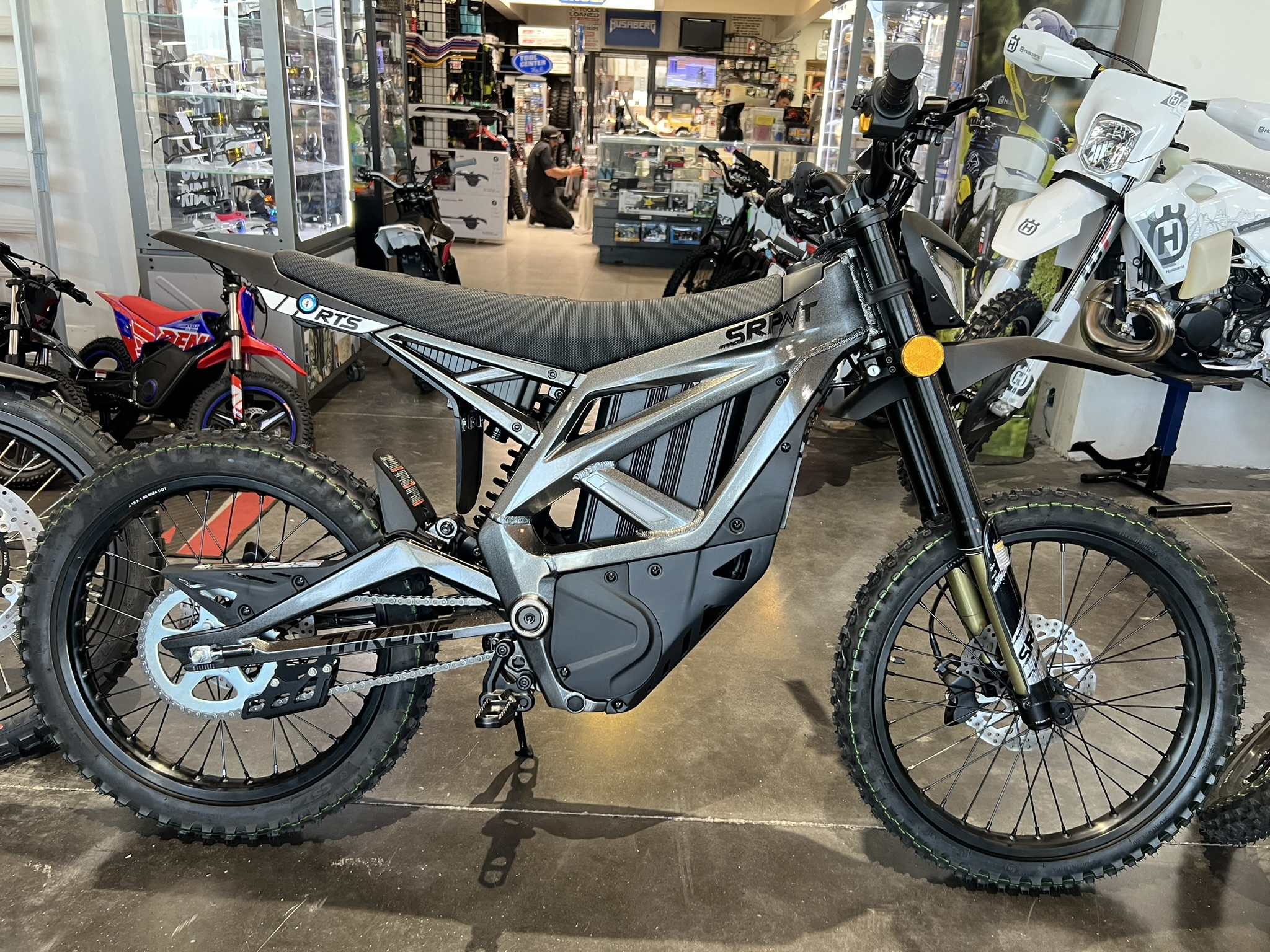

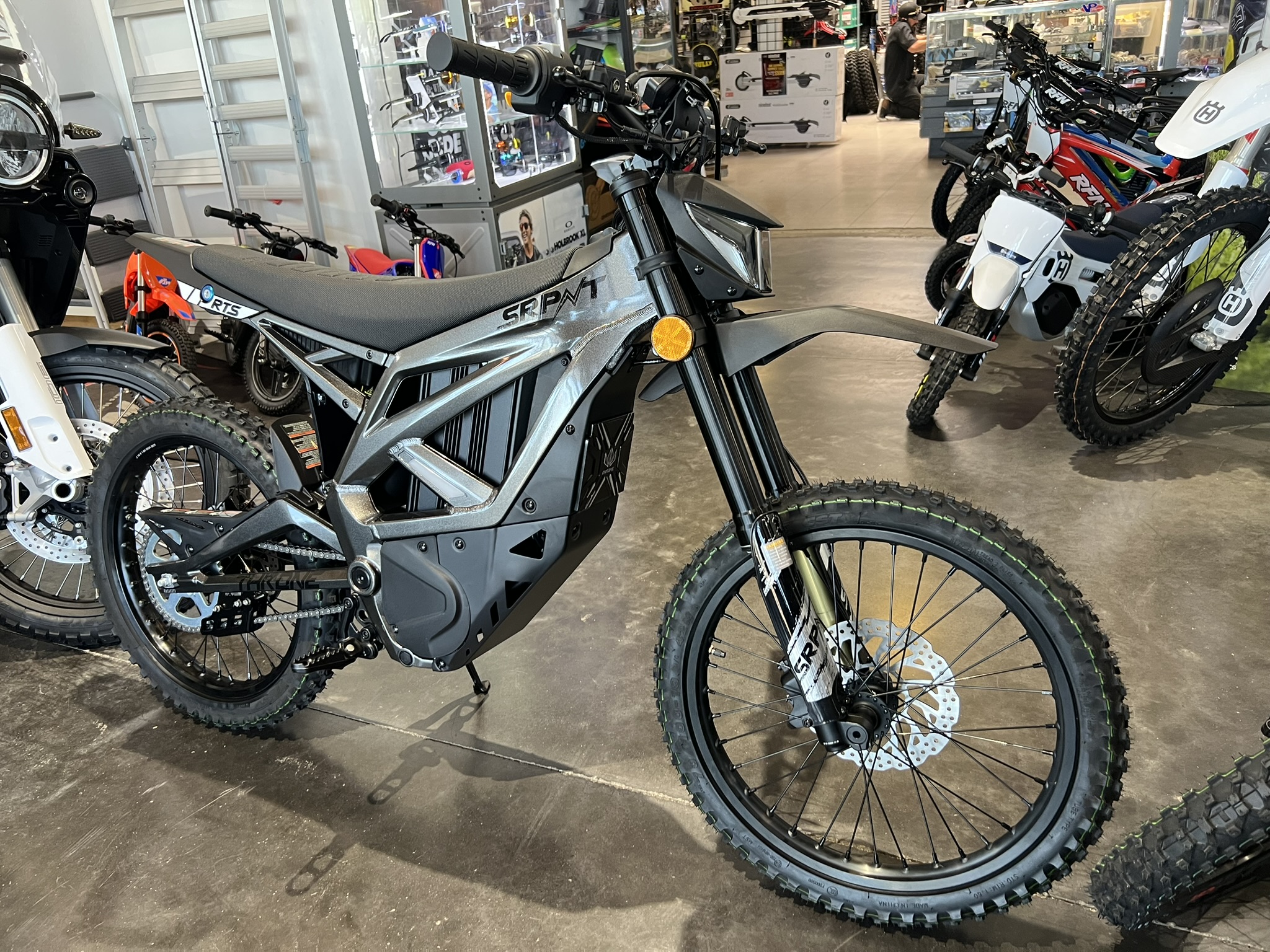

Throne Srpnt X3 – Concrete Grey

 Introducing the all-new X3 – Concrete Grey – e-DIRT BIKE powered by Throne Cycles! Experience the electrifying power of 72 volts and 10,000 watts of pure power! A custom alloy frame crafted under 3000 lbs. of pressure, this bike promises an unparalleled adventure.

Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you’re navigating rugged terrain or enjoying off-road trails, the X3 – e-DIRT BIKE delivers unmatched performance and excitement. New Industry levels!

Embrace the thrill and be among the first to pre-order* your own. However, please note that while this bike offers unparalleled excitement, it’s important to remember that it’s not street-legal. Prepare to elevate your off-road experience like never before with the X3 – e-DIRT BIKE.

MOTOR

• Motor Type: PMSM

• Mounting Position: Mid

• Weight / Motor External Diameter: 21.05 lbs / 6.10 in

• Motor Axial Length: 5.12 in

• Peak Efficiency: 98%

• Cooling Method: Air-Cooled

CONTROLLER

• Controller Type: FOC

• Dimensions: 6.3 x 5.6 x 3.1 in

• Peak Efficiency: 98.5%

• Power Modes: Eco, High, and Sport

MOTOR POWER SYSTEM

• Rated Voltage: 72V (DC)

• Rated Torque / Peak Torque: 70.16 ft-lb / 84.03 ft-lb

• Motor Shaft Output Torque @ 1000RPM: 339.03 ft-lb

• Rated Rotation Speed: 5400 RPM

• Peak Efficiency: 97%

• Efficiency Range (≥80%): 2.21 – 33.19 ft-lb

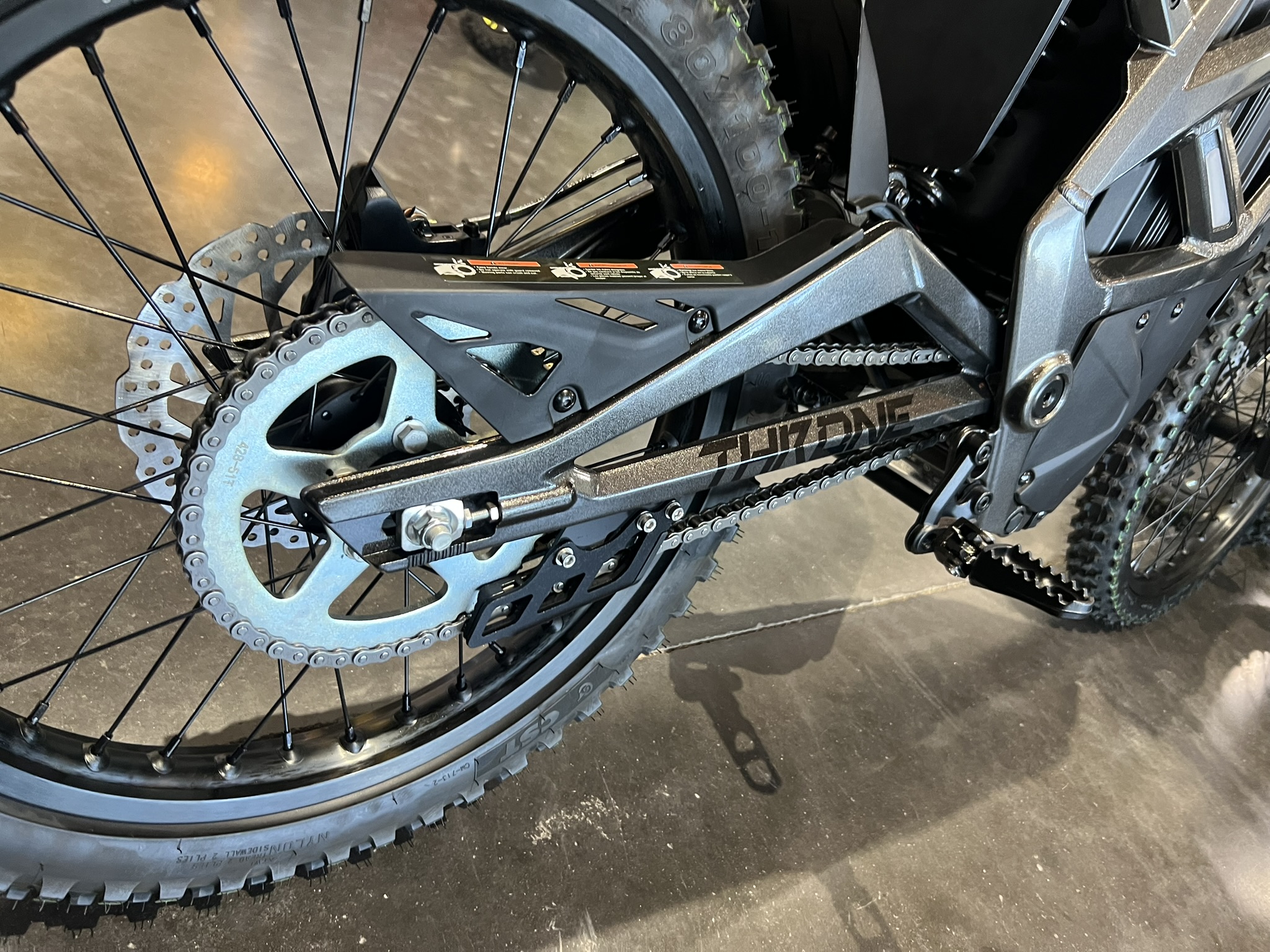

TRANSMISSION

• Gear Ratio: 13:51

• Transmission: Motorcycle Chain & 428 Drive Chain

• Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS

• Horn: CQC

• Battery: 72V 40Ah Lithium Battery (176 LG Cells)

• Battery Life: 500 Cycles

• Battery Display: Integrated LCD

• Charger: 9A

• Charging Time: 3.5 Hours

• USB Connection: Type-C

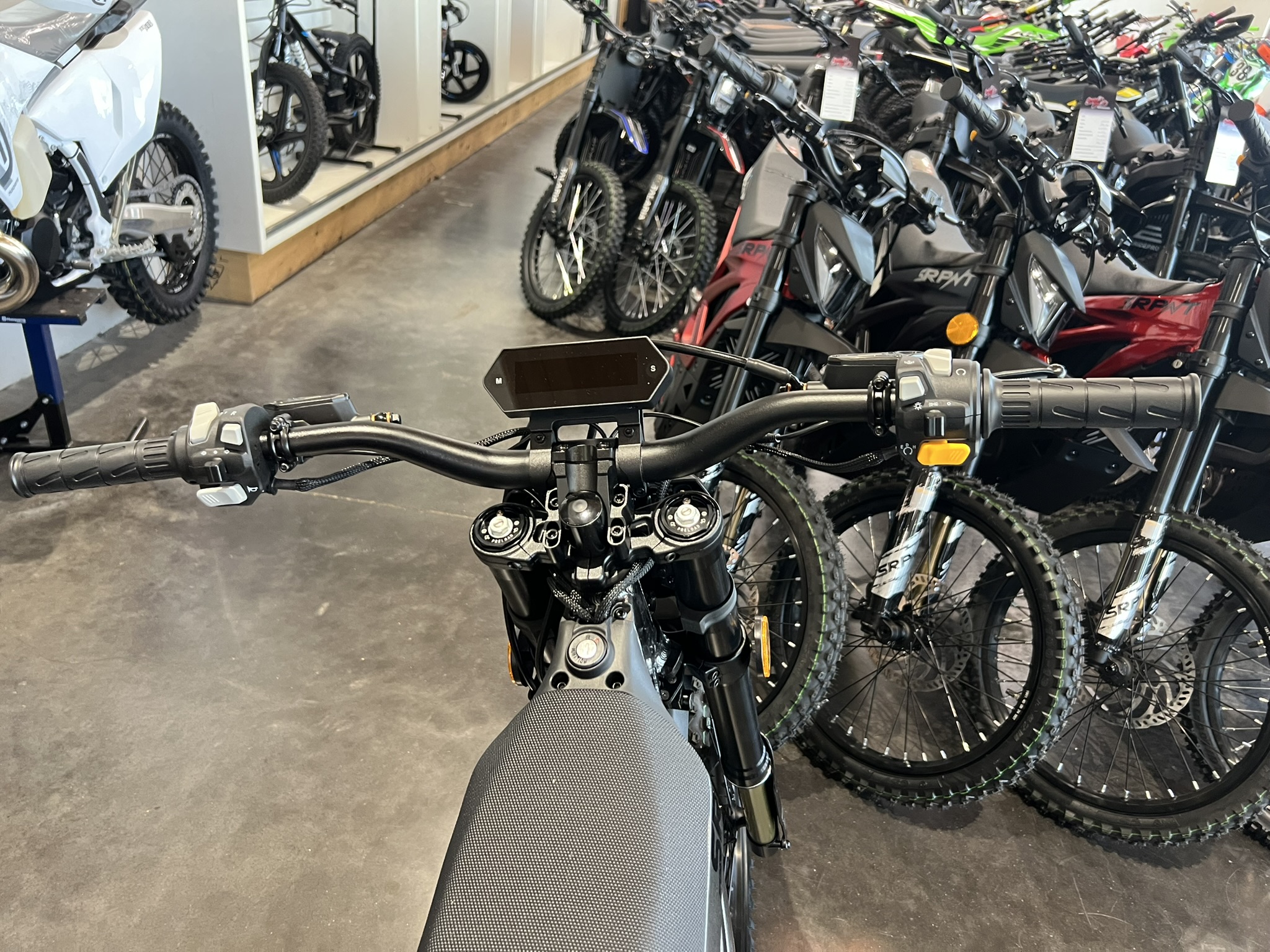

• Speedometer: TFT

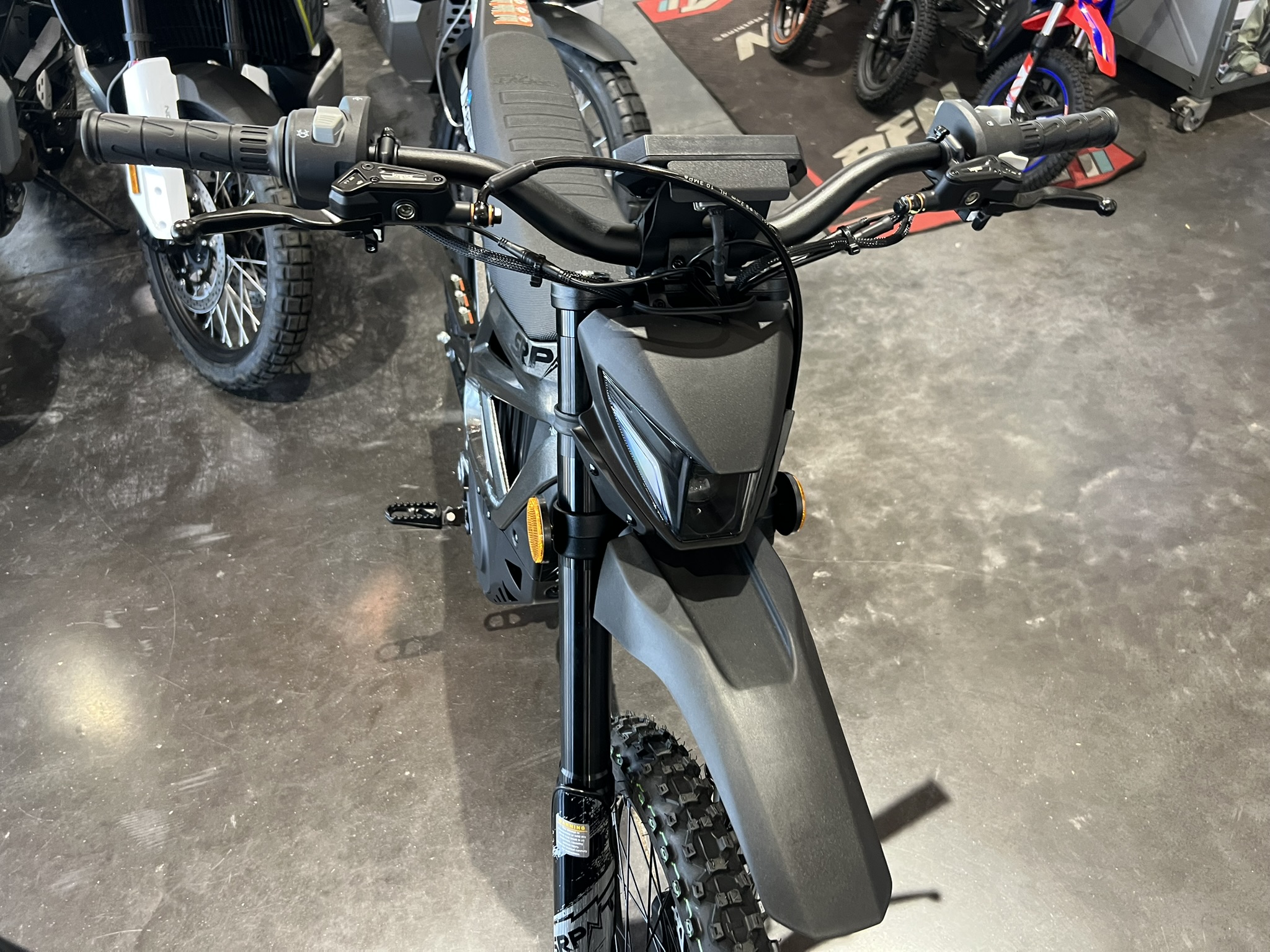

• LED Headlight & Rear Light: Yes

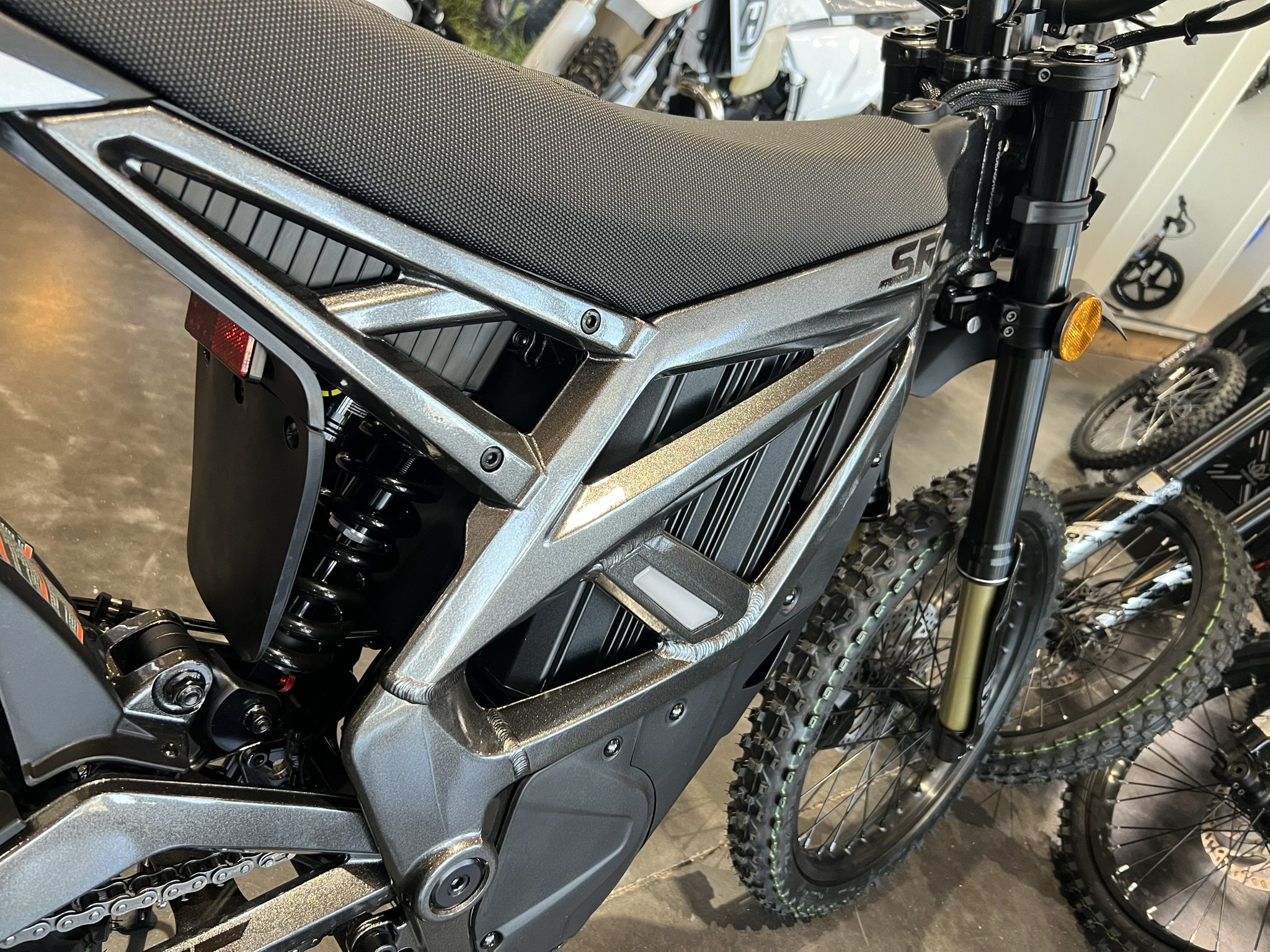

FRAME DETAILS

• Chassis / Swing Arm Material: 6061 T4 & T6 Aluminum

• Chassis Construction: Forged with 3,000 Tons of Pressure

• Surface & Color Finish: Baked Paint

• Front Suspension: Inverted Fork with 7.87 in Travel

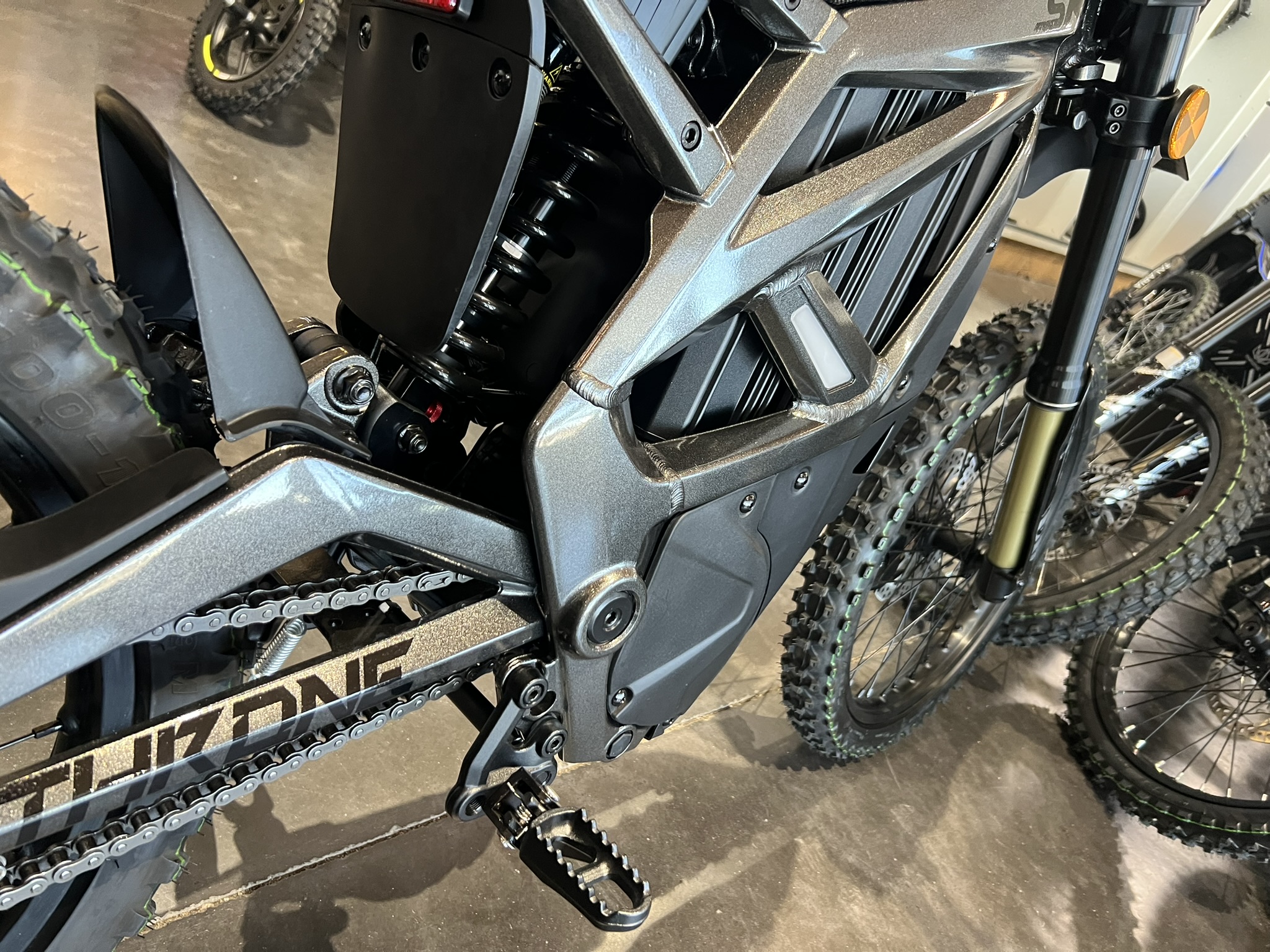

• Rear Suspension: KKE Suspension Link System

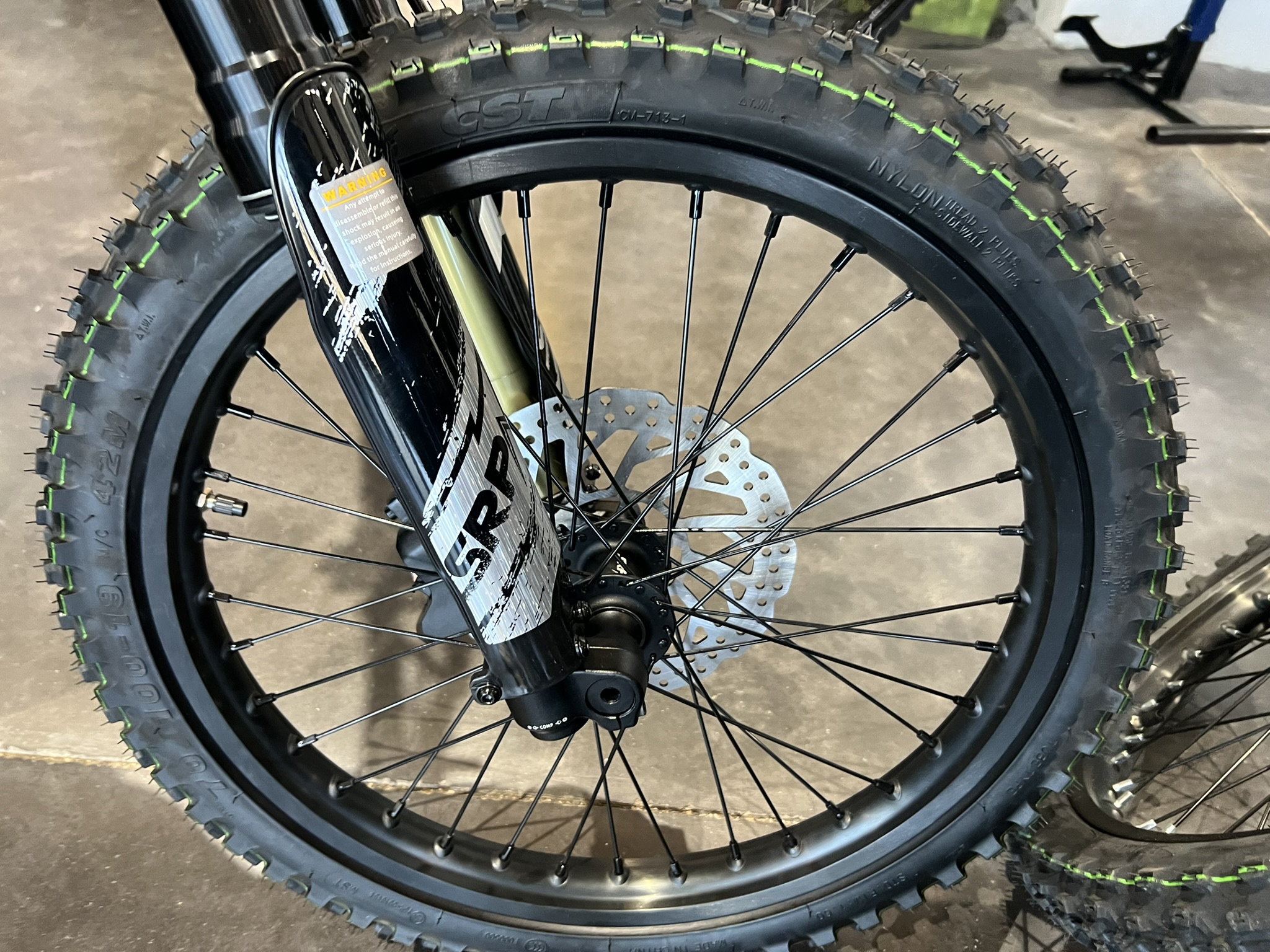

• Wheels (Front/Rear): 1.4–19 / 1.6–19 Alloy Hubs

DIMENSIONS

• Ground Clearance: 10.63 in

• Wheelbase: 49.21 in

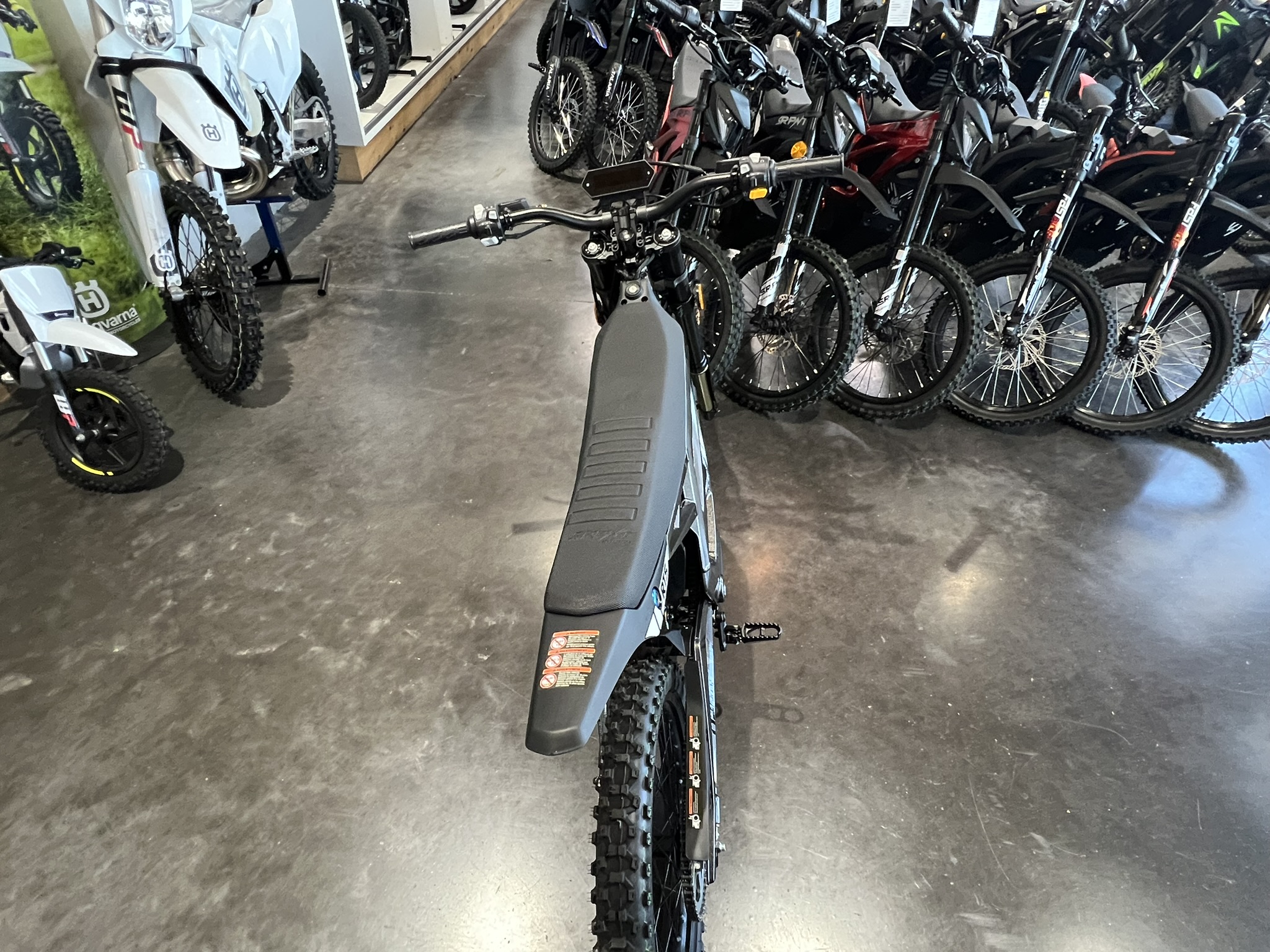

• Seat Height: 33.46 in

• Vehicle Dimensions (L x W x H): 74.02 x 31.69 x 44.49 in

DRIVE

• Top Speed: 56 mph

• Net Weight: 160.94 lbs

• Rear Sprocket: 51T

• Side Stand: Yes, with Kill Switch

• Battery Lifespan (Uses): 600

• Carry Capacity: 320 lbs
