Description

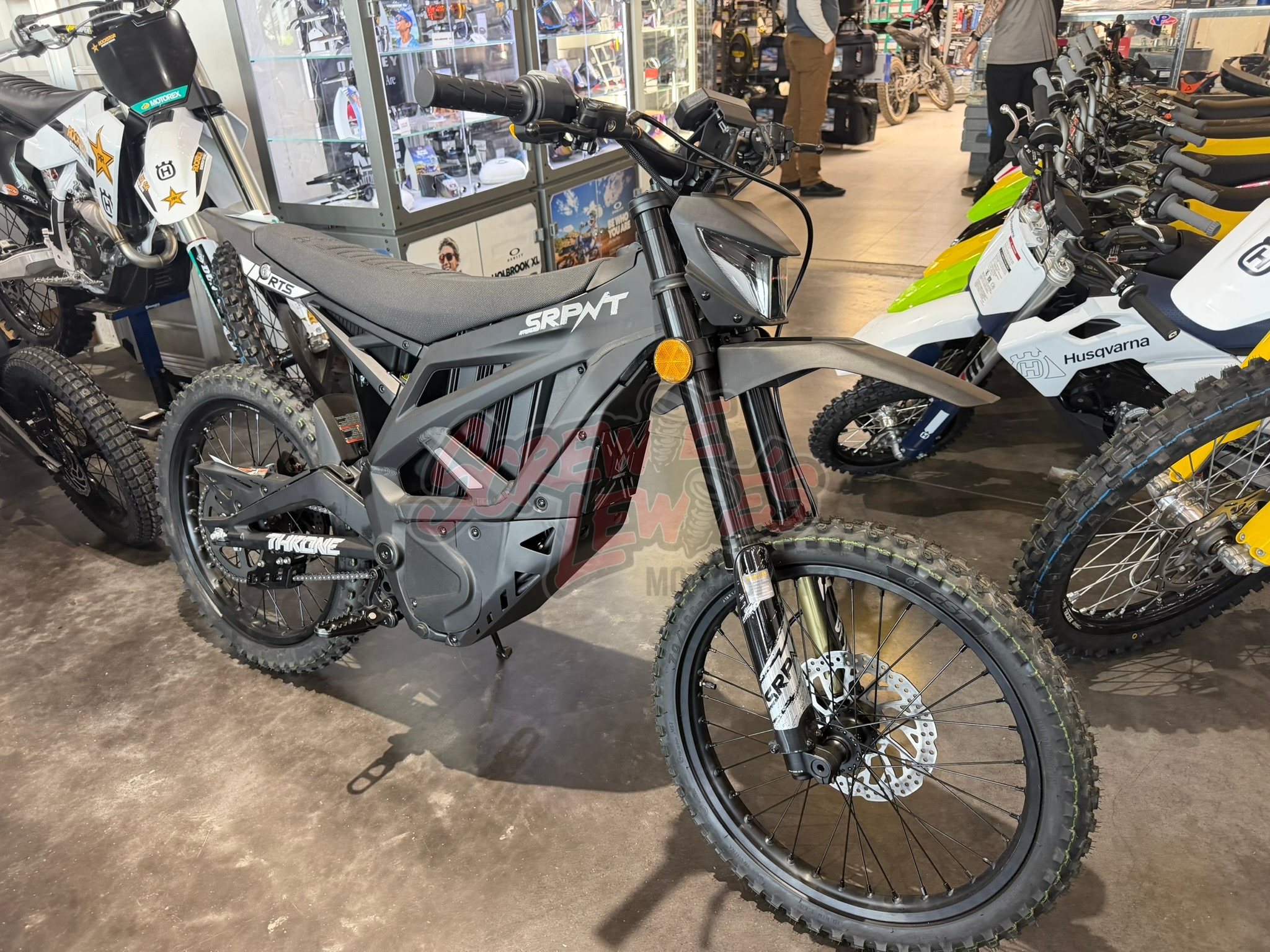

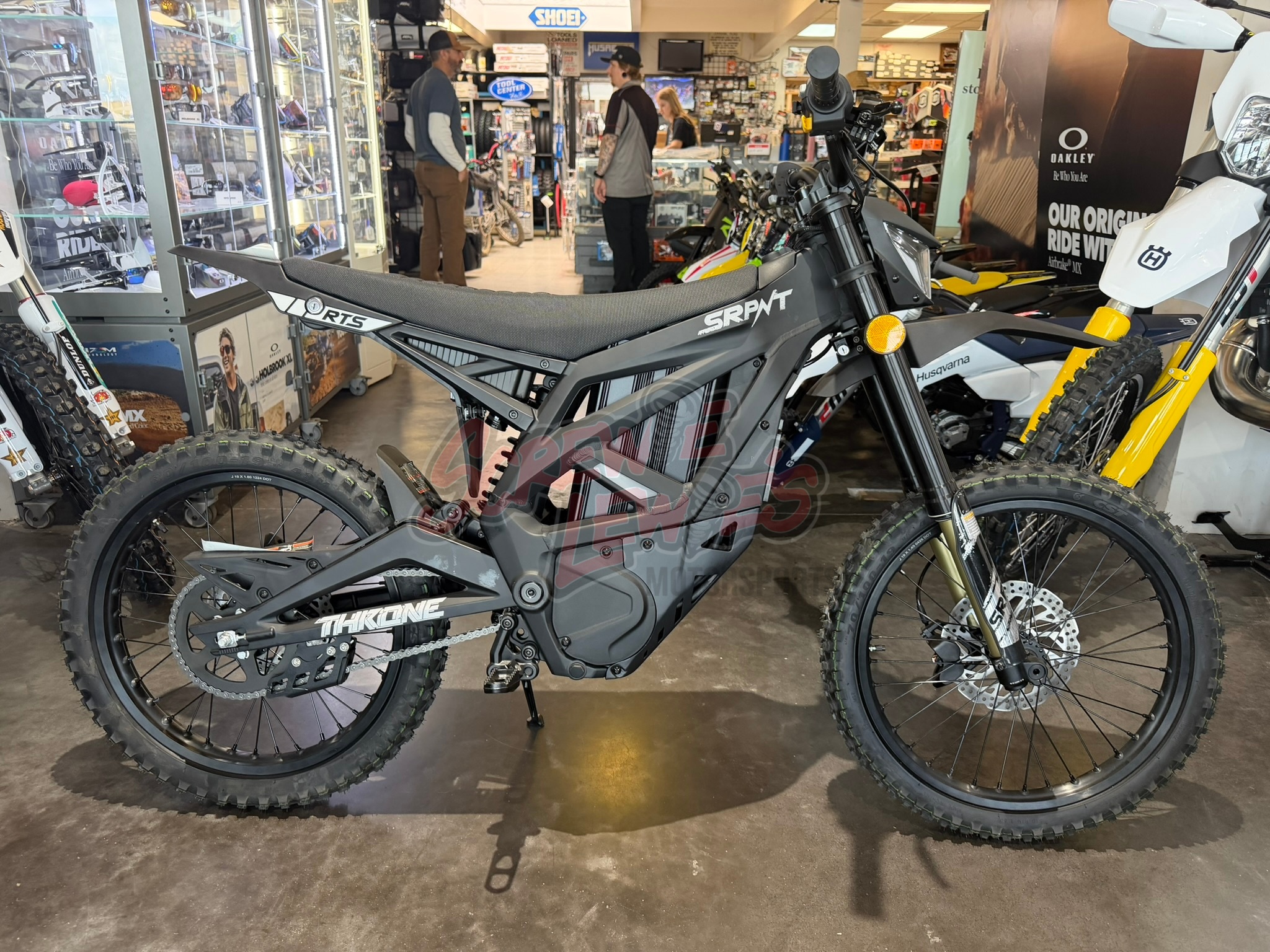

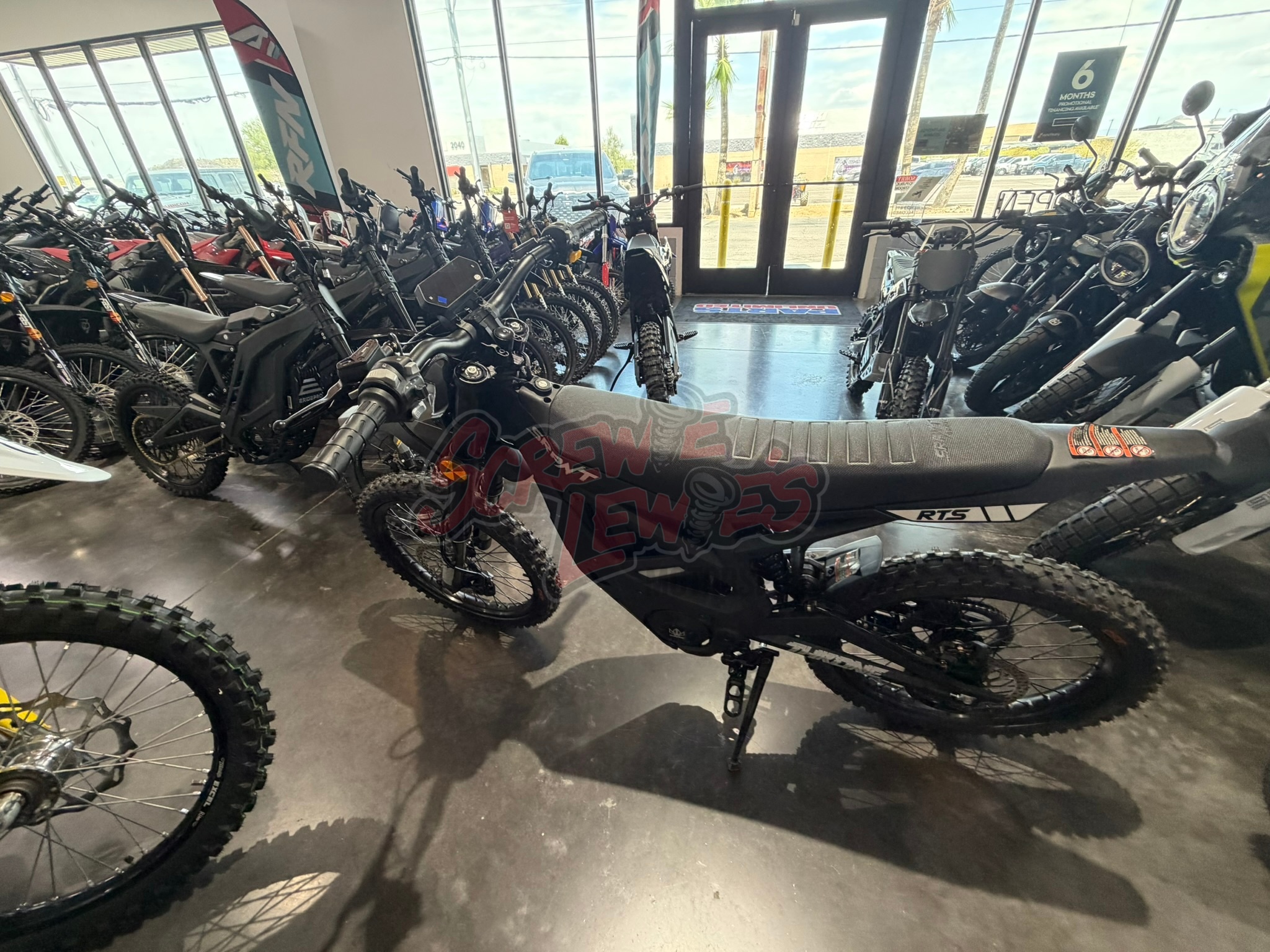

Throne Srpnt X3 Black Electric Dirt Bike

MOTOR

• Motor Type: PMSM

• Mounting Position: Mid

• Weight / Motor External Diameter: 21.05 lbs / 6.10 in

• Motor Axial Length: 5.12 in

• Peak Efficiency: 98%

• Cooling Method: Air-Cooled

CONTROLLER

• Controller Type: FOC

• Dimensions: 6.3 x 5.6 x 3.1 in

• Peak Efficiency: 98.5%

• Power Modes: Eco, High, and Sport

MOTOR POWER SYSTEM

• Rated Voltage: 72V (DC)

• Rated Torque / Peak Torque: 70.16 ft-lb / 84.03 ft-lb

• Motor Shaft Output Torque @ 1000RPM: 339.03 ft-lb

• Rated Rotation Speed: 5400 RPM

• Peak Efficiency: 97%

• Efficiency Range (≥80%): 2.21 – 33.19 ft-lb

TRANSMISSION

• Gear Ratio: 13:51

• Transmission: Motorcycle Chain & 428 Drive Chain

• Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS

• Horn: CQC

• Battery: 72V 40Ah Lithium Battery (176 LG Cells)

• Battery Life: 500 Cycles

• Battery Display: Integrated LCD

• Charger: 9A

• Charging Time: 3.5 Hours

• USB Connection: Type-C

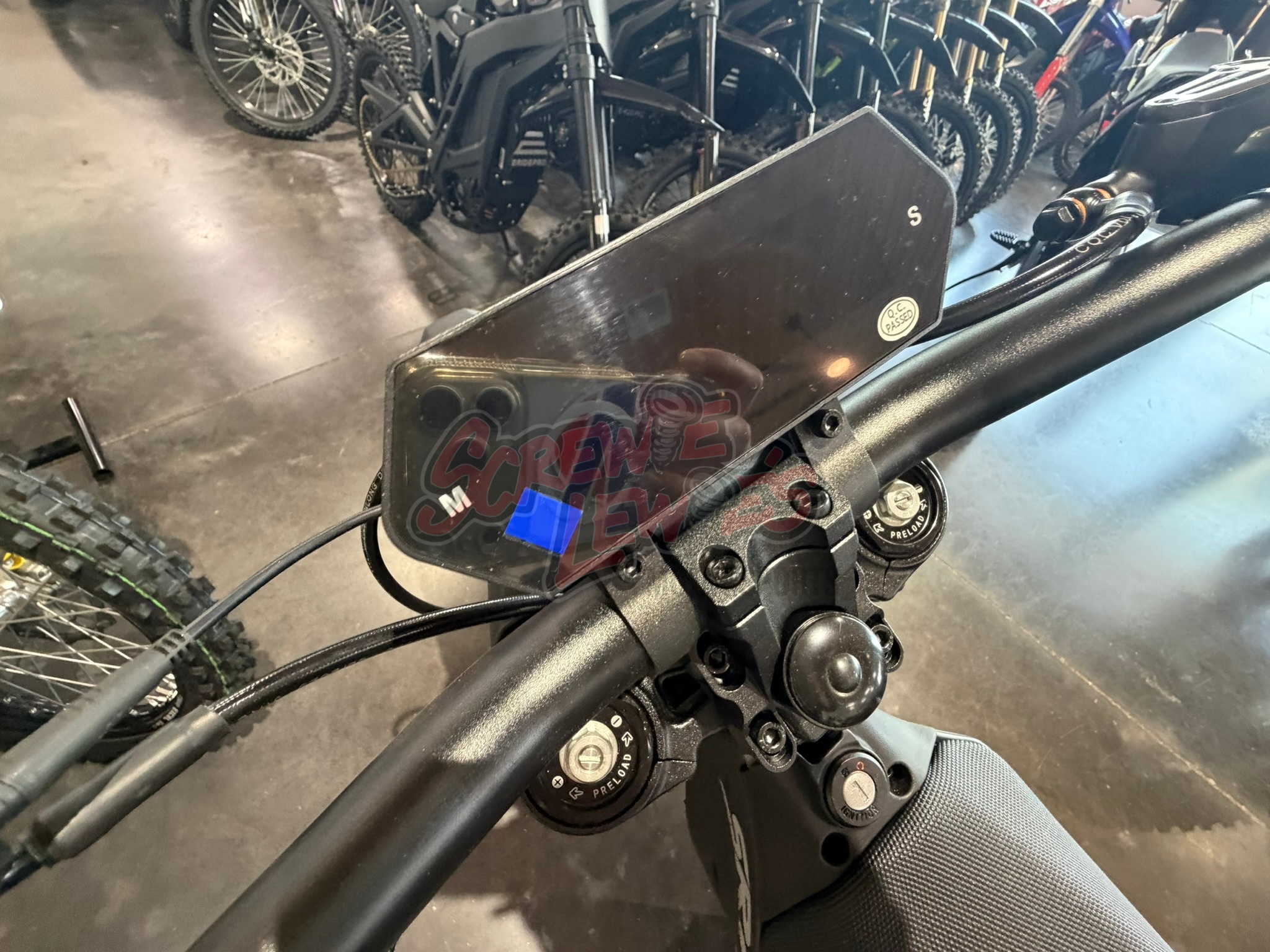

• Speedometer: TFT

• LED Headlight & Rear Light: Yes

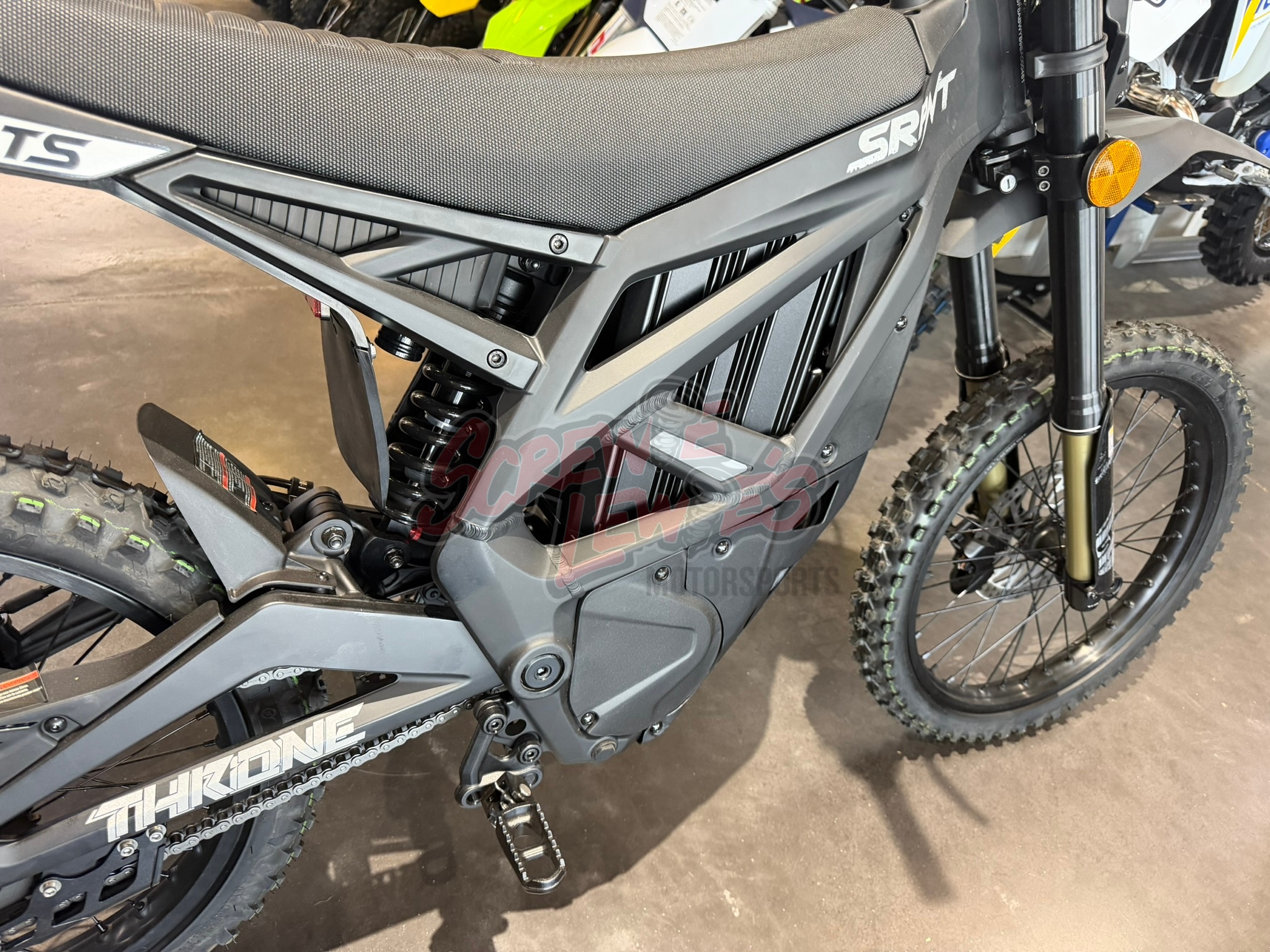

FRAME DETAILS

• Chassis / Swing Arm Material: 6061 T4 & T6 Aluminum

• Chassis Construction: Forged with 3,000 Tons of Pressure

• Surface & Color Finish: Baked Paint

• Front Suspension: Inverted Fork with 7.87 in Travel

• Rear Suspension: KKE Suspension Link System

• Wheels (Front/Rear): 1.4–19 / 1.6–19 Alloy Hubs

DIMENSIONS

• Ground Clearance: 10.63 in

• Wheelbase: 49.21 in

• Seat Height: 33.46 in

• Vehicle Dimensions (L x W x H): 74.02 x 31.69 x 44.49 in

DRIVE

• Top Speed: 56 mph

• Net Weight: 160.94 lbs

• Rear Sprocket: 51T

• Side Stand: Yes, with Kill Switch

• Battery Lifespan (Uses): 600

• Carry Capacity: 320 lbs
