Description

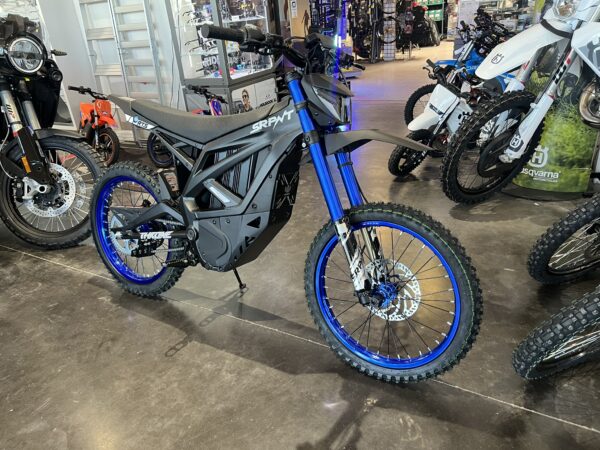

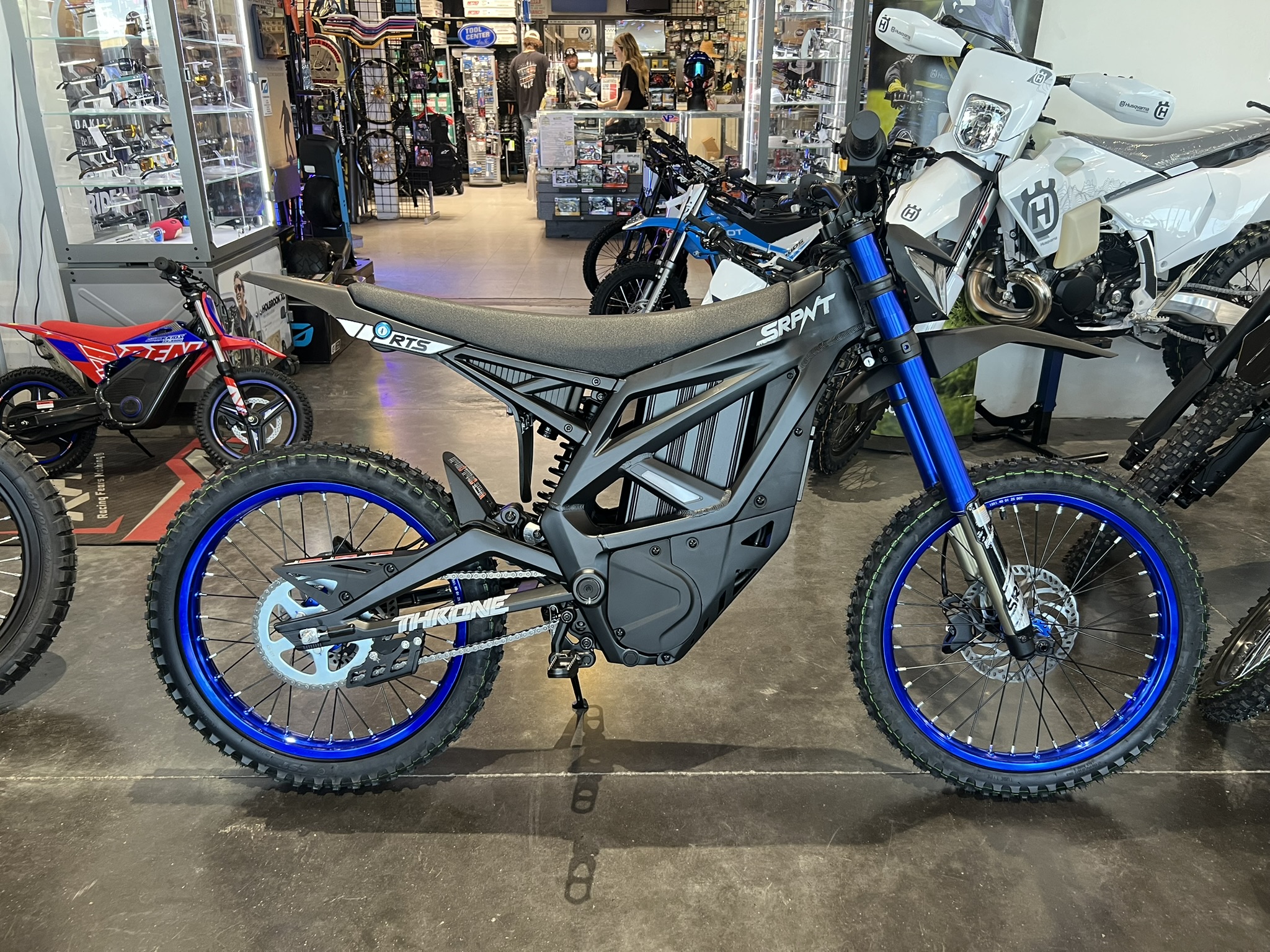

Throne Srpnt Black Magic

Get ready to experience the raw thrill of 72 volts and a staggering 10,000 watts of electric power. The SRPNT eDIRT BIKE is engineered for adrenaline-charged performance, featuring a custom alloy frame forged under 3,000 lbs. of pressure—built for serious off-road domination.

Designed with safety at its core, the SRPNT comes equipped with dual kill switches and strategically positioned lights for maximum visibility, keeping you secure as you tear through trails and tackle the toughest terrain.

Specifications

MOTOR

Motor Type: PMSM

Mounting Position: Mid

Weight/Motor External Diameter: 21.05 lbs / 6.10 in

Motor axial Length: 5.12 inches

Peak Efficiency: 98%

Cooling Method: Air-Cooled

CONTROLLER

Controller Type: FOC

Dimensions: 6.30 in × 5.59 in × 3.11 in

Peak Efficiency: 98.50%

Power Modes: Eco, High, and Sport

MOTOR POWER SYSTEM

Rated Voltage: 72V (DC)

Rated Torque/ Peak Torque: 95115Nm

Motor Shaft Output Torque @1000RPM: 460Nm

Rated Rotation Speed: 5400rpm

Peak Efficiency: 97%

Range of Efficiency: 3Nm – 45Nm

TRANSMISSION

Gear Ratio: 13:51

Transmission: Motorcycle Chain & 428 Drive Chain

Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS

Horn: CQC

Battery: 72V 40AH Lithium Battery with 176 LG Cells

Battery Life Time: 500 Cycles

Battery Charge Level: Integrated Battery LCD Display

Charge: 9A

Charging Time: 3.5 Hours

USB Connection: Type C

Speedometer: TFT

LED Headlight & Rear Light: Yes

FRAME DETAILS

Chassis -Swing Arm Material: No.6061 T4&T6 Aluminum

Chassis Construction Method: Forged by 3000 Tons of Pressure

Chassis Surface & Color Processing: Baked Paint

Front Suspension: Inverted Suspension Fork with 200mm Travel

Rear Shock Absorber: KKE Suspension Link System

Wheel Type & Size: Front/Rear :1.4-19 , 1.6-19 Alloy Hubs

DEMENSIONS

Ground Clearance: 10.63 inches

Wheelbase: 49.21 inches

Seat Height: 33.46 inches

Vehicle Dimensions: 74.02 in × 31.69 in × 44.49 in

DRIVE

Top Speed: 55.92mph

Net Weight: 160.94 lbs

Rear Sprocket: 51T

Side Stand: Yes with Kill Switch

Carry Capacity: 320lb
