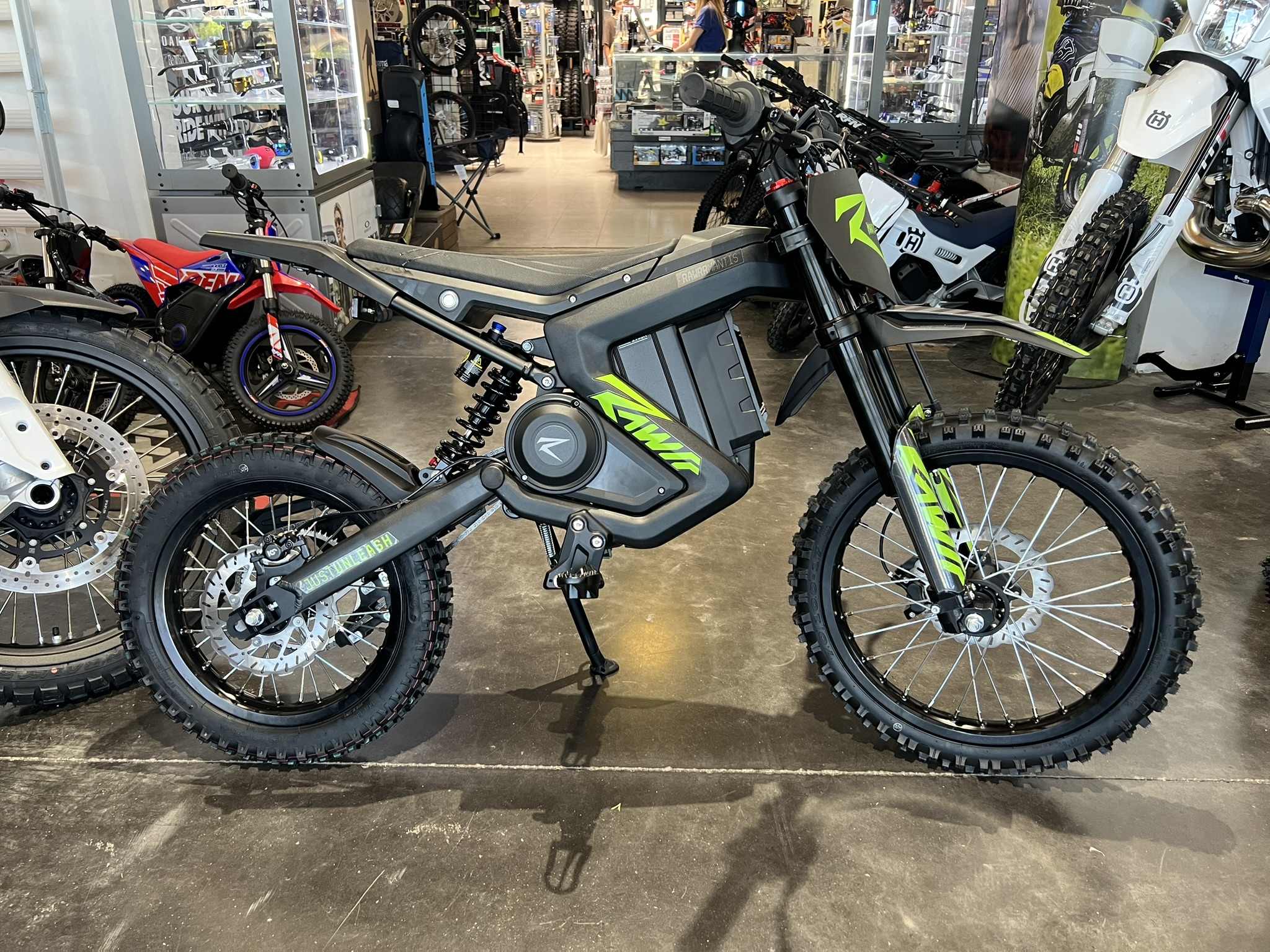

RAWRR Mini R

Specifications

Dimensions & Weight

• Length: 64.57 in

• Width: 26.42 in

• Height: 38.98 in

• Max Ground Clearance: 10.63 in

• Wheelbase: 42.56 in

• Seat Height: 30 in

• Weight (with battery): 110 lb

• Max Payload Capacity: 165 lb

 Performance

• Top Speed: 46 mph

• Acceleration:

  • 0–18.6 mph in 1.8 s

  • 0–31 mph in 3.6 s

  • 0–46 mph in 10 s

• Range: 31 miles

• Maximum Torque: 154.9 ft·lb

• Motor Power:

  • Peak: 4500 W

  • Rated: 2000 W

• Climbing Ability: Up to 45°

 Safety & Controls

• Motor & Controller Protection: IP66

• Battery & Connector Protection: IP55

• App-Controlled Tuning: Yes

• Top Speed Limiter: Yes

• Kill Switch: Yes

• Chain Cover: Yes

• Kickstand Sensor: Yes

• Brake Sensors: Yes

 Electrical

• Display: LCD dash

• Battery Type: Lithium-ion

• Battery Voltage: 72 V

• Battery Capacity: 1440 Wh

• Battery Life: 800 cycles

• Charger Input Voltage: AC 110–220 V

• Charge Time: 3–6 hrs

• Controller: FOC Sine Wave

• Ride Modes: 3 (Mode 1 / 2 / 3)

 Mechanical

• Brake System: 2‑Piston Hydraulic Disc (Front & Rear, 203 mm diameter)

• Front Fork Travel: 4.33 in

• Motor Type: Brushless (air-cooled)

• Drive System: Direct chain drive

• Max Operating Temperature (Motor): 85 °C

• Frame Material: 6061 aluminum alloy
