Description

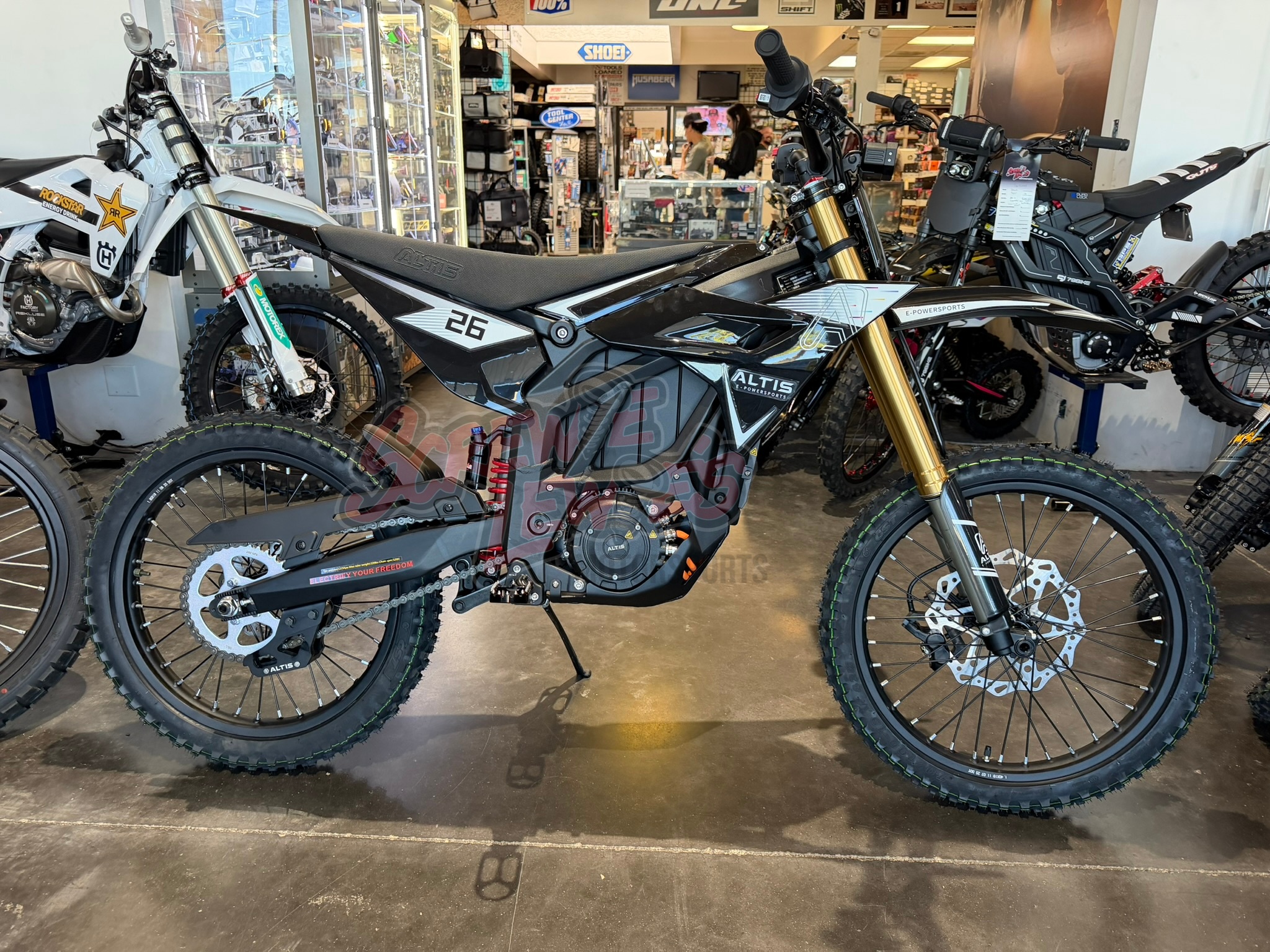

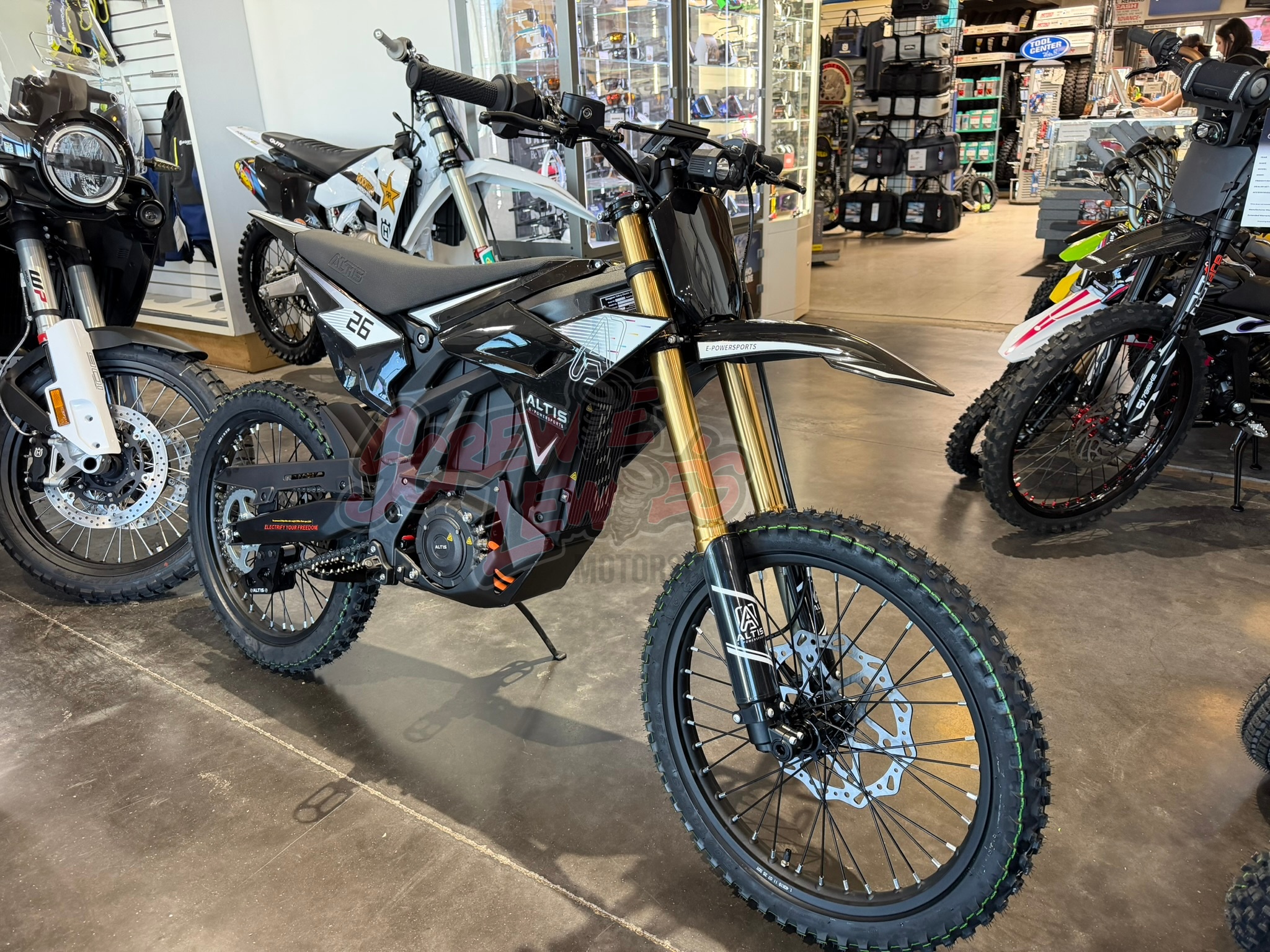

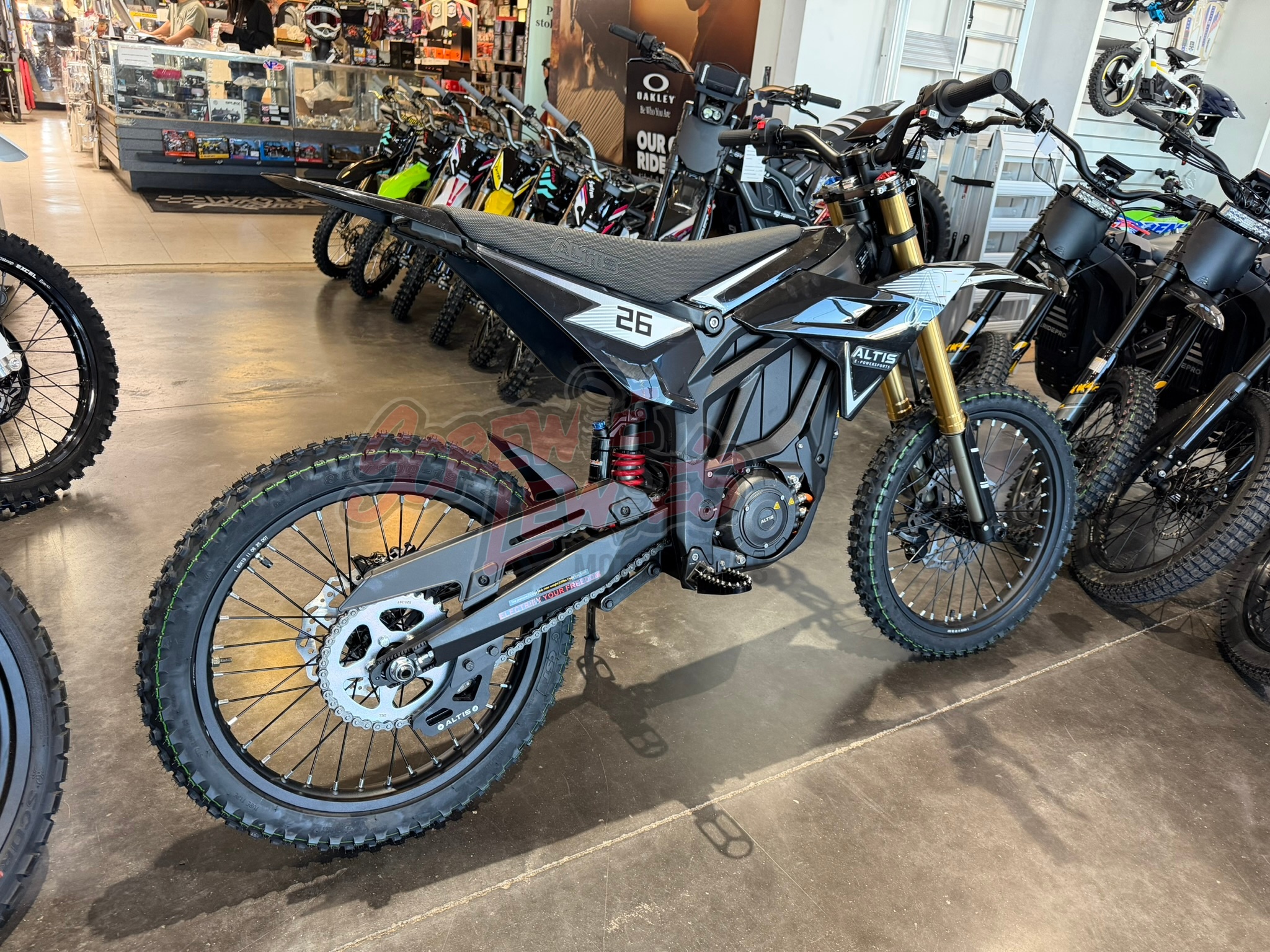

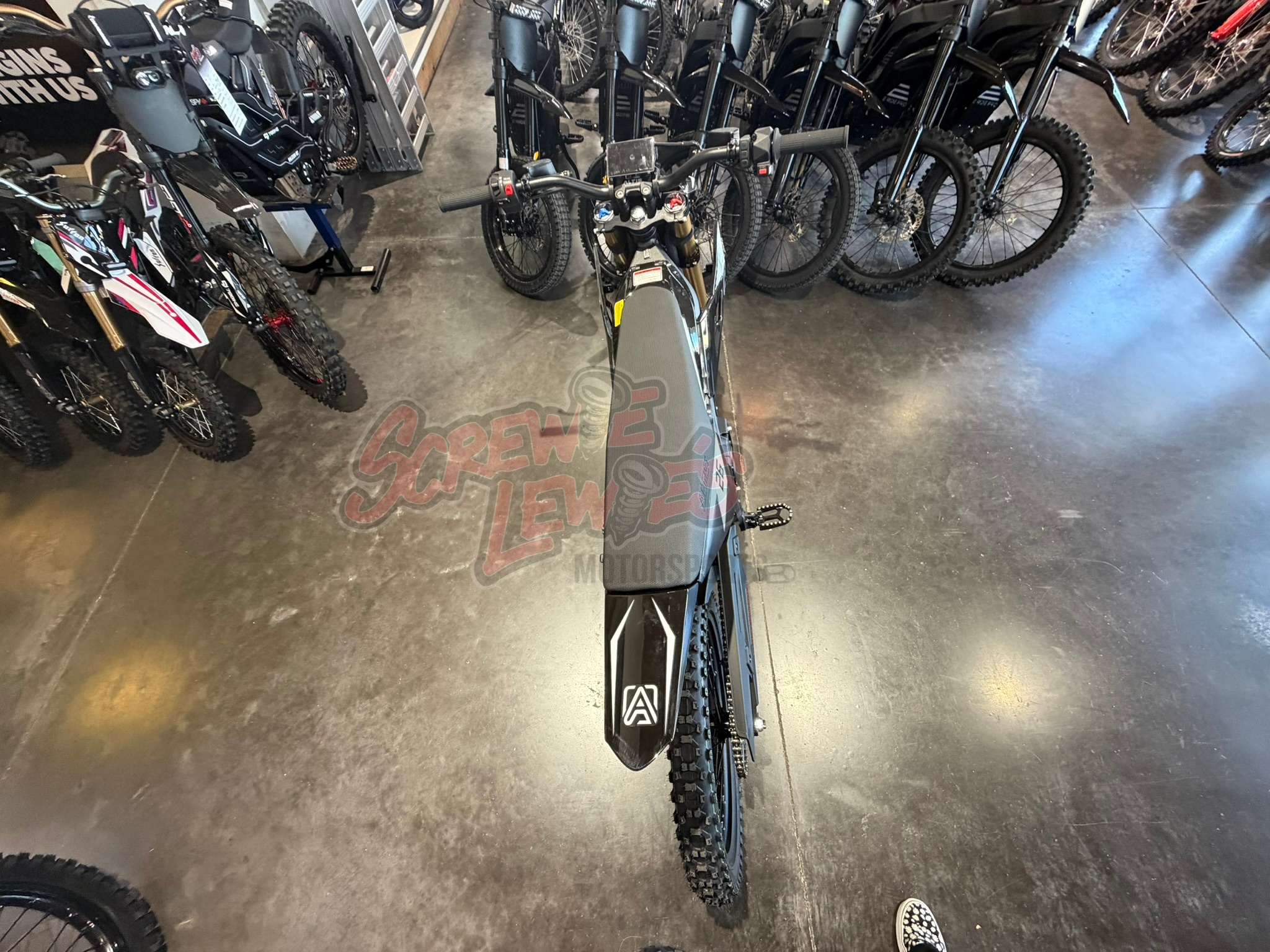

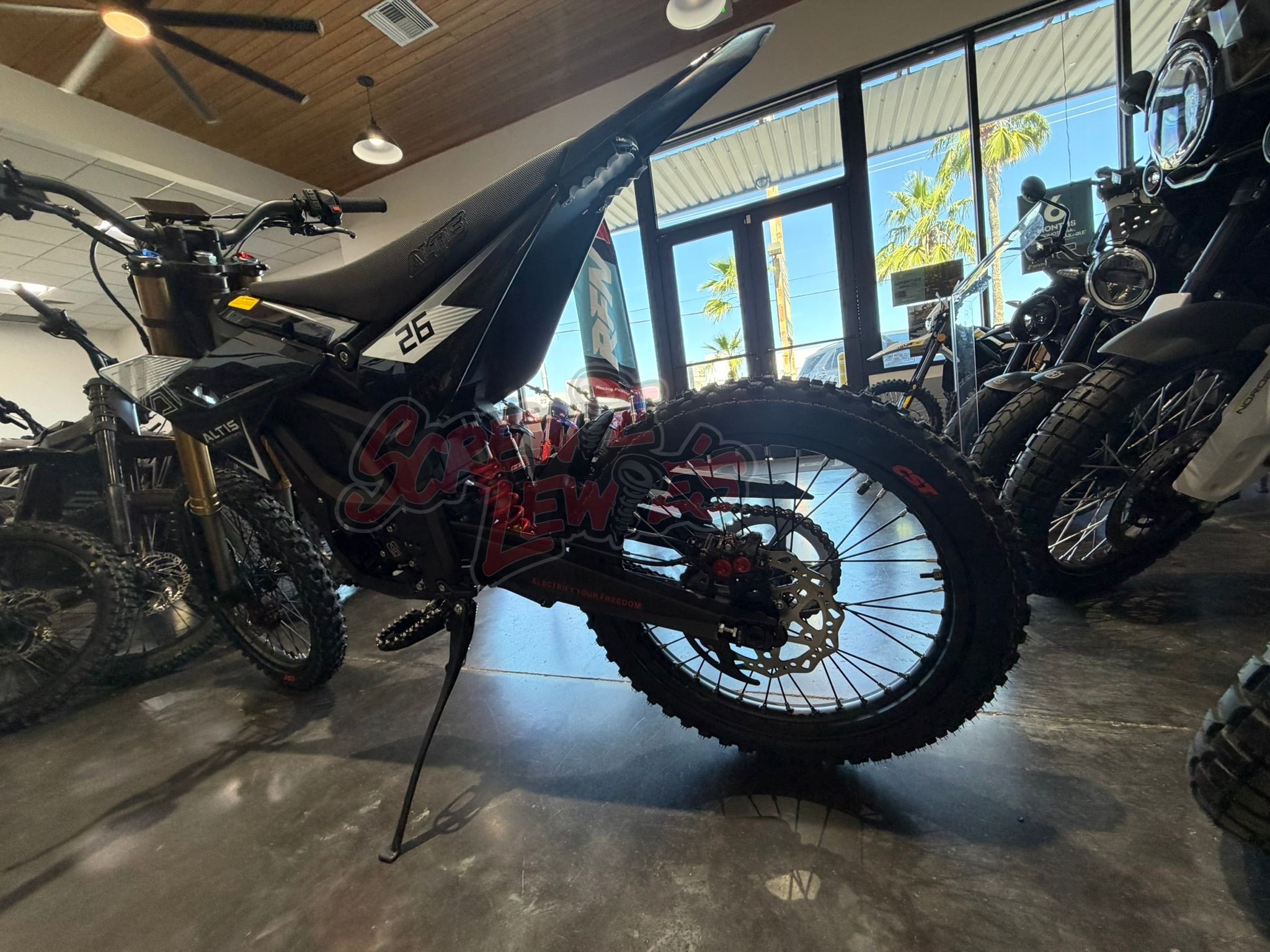

Altis Sigma MX
Key Specifications
- 97.2V35Ah (3402Wh) Samsung 50S battery Cells (Greenway Battery Pack)
- Charging time (20% – 80%): 2 Hours
- 23kw (31HP) peak Hairpin Motor (Automotive standard)

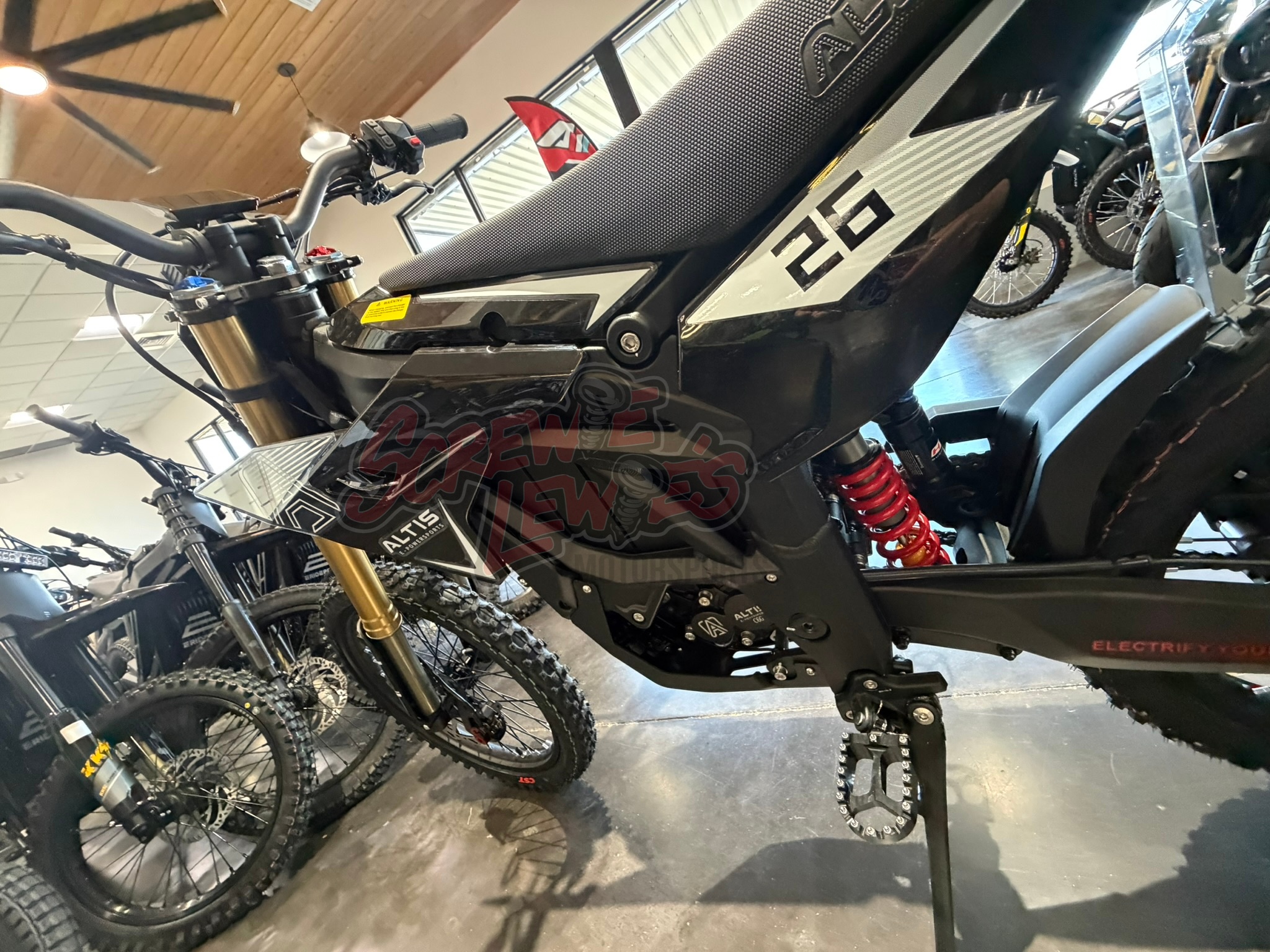

- Adjustable off-road air-spring suspension

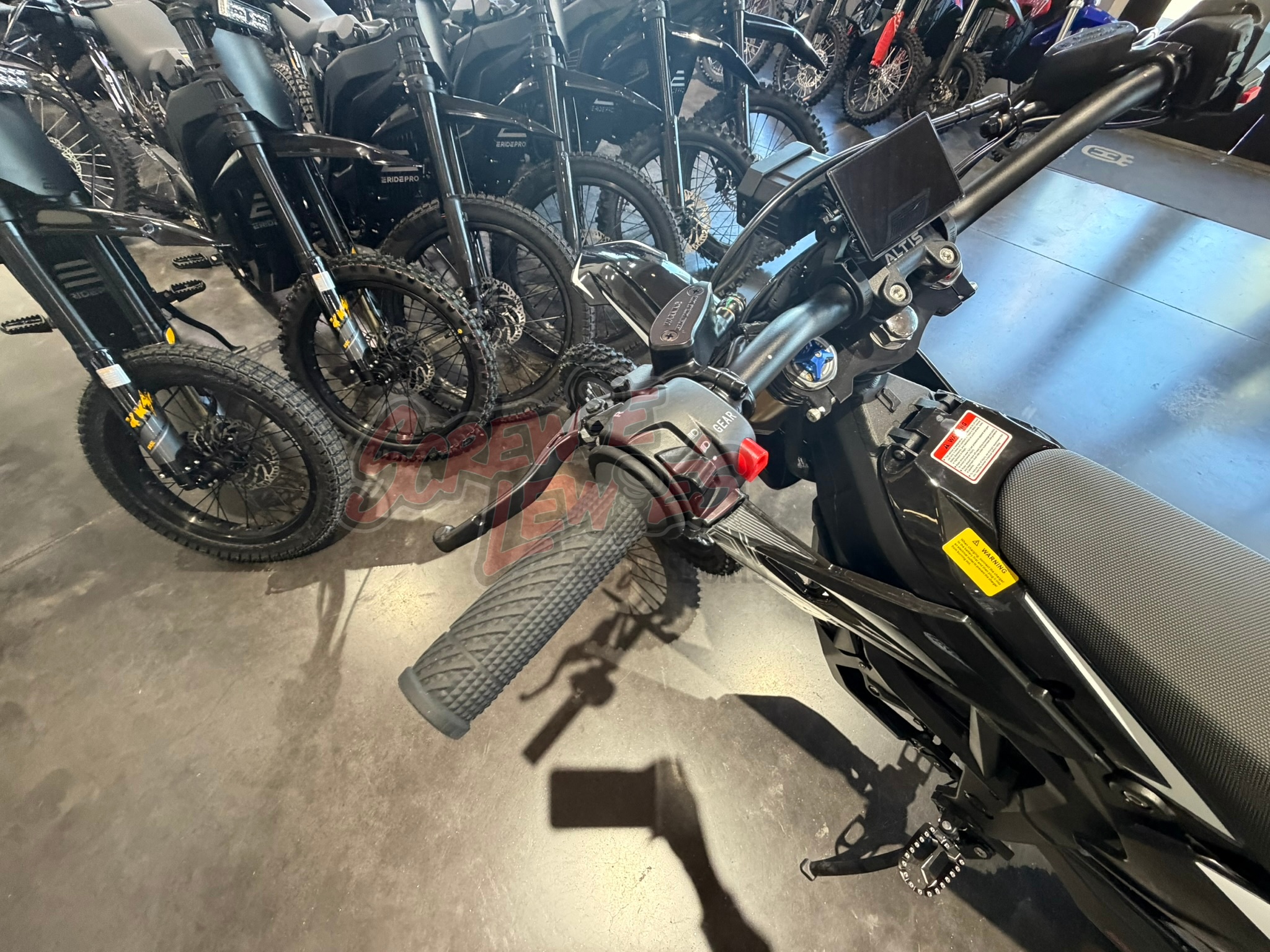

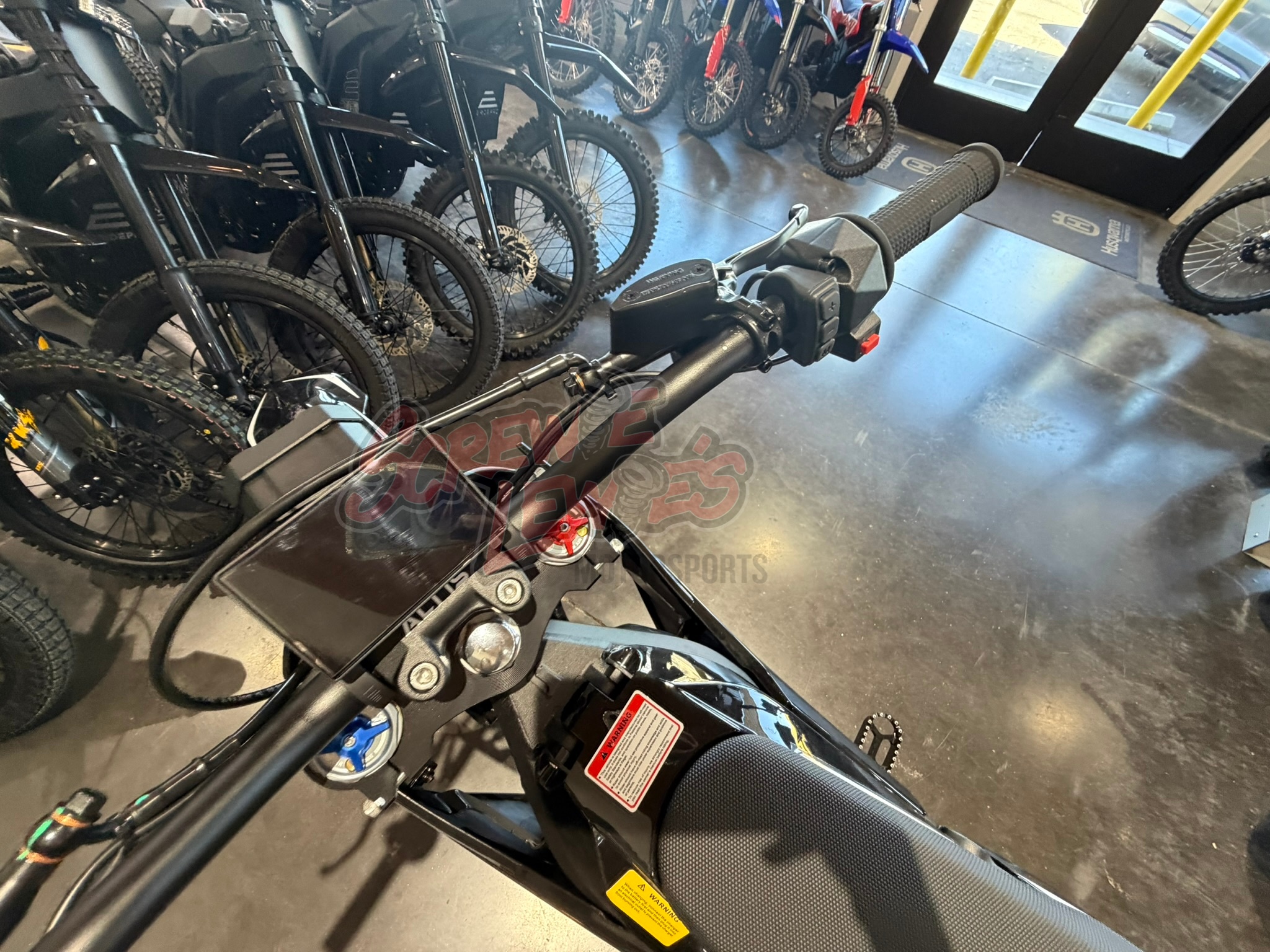

- 3.5″ TFT display with NFC feature
- 5 levels of regenerative braking
- Headlight & Taillight (w/brake light) switch
- Heavy duty disc brake
- CST off-road tires
CHASSIS
- Weight (with battery): 88 kg
- Wheelbase: 1285 mm
- Front brake disc diameter: 260 mm
- Rear brake disc diameter: 220 mm

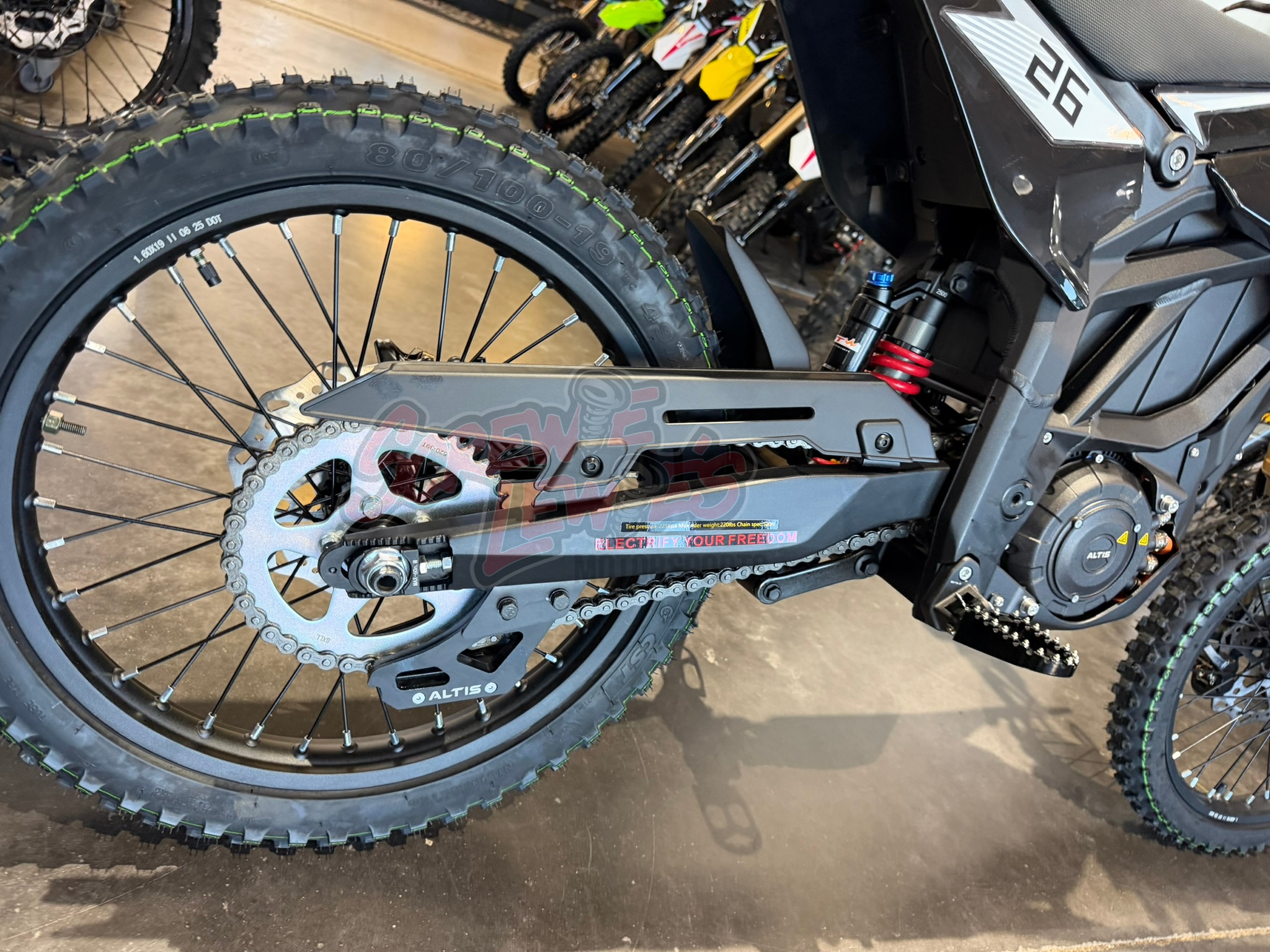

- Chain: 428H
- Frame design: Aluminium alloy forging
- Ground clearance: 300m
- Seat height: 840 mm
- Steering head angle: 26 °
- Suspension travel (front): 200 mm
- Suspension travel (rear): 85 mm with linkage
- Rear Wheel travel: 200mm with linkage
- Wheels: Spoked wheels with aluminum rims
Motor
- Max. power: 23 kW (31HP)
- Torque: 601 Nm (443 ft-lbs.)
- Battery: Lithium-Ion ALTIS Powerpack
- Battery capacity: 35 Ah
- Charging input: AC110V/112V12.5A
- Charging time 20%-100%: 180 min.
- Charging time 20%-80%: 120 min.
- Cooling: Air cooled
- Energy content: 3.402 kWh
- Electric motor: 98V – Hairpin motor
